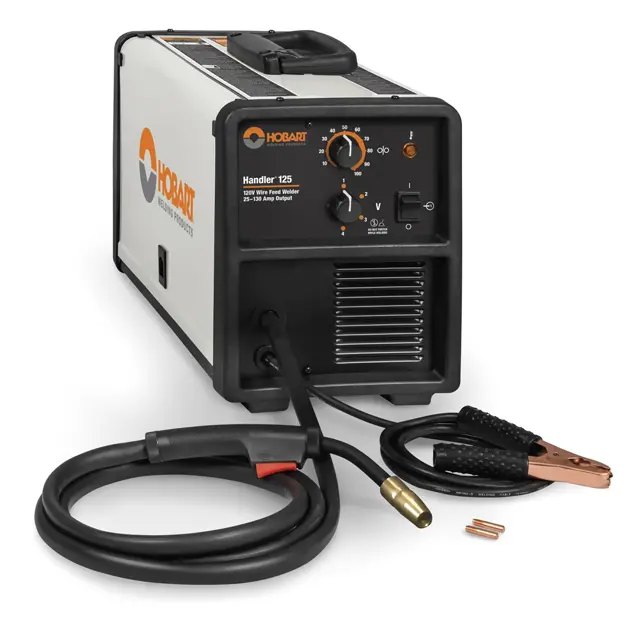

Hobart Hobart - Handler 125 Handler 125

1. Remove nozzle. Cut off wire at contact tip, and remove contact tip and tip adapter.

2. Open pressure assembly. Retract wire from liner onto spool.

3. Hold wire tightly to keep it from unraveling. Secure end of wire at spool.

4. Remove screws (3) from cover, and remove cover from wire drive assembly.

5. Lay gun cable out straight, and blow out liner.

Reassemble drive cover and gun in reverse order from taking it apart.;

Drive motor protection circuit protects drive motor from overload. If drive motor becomes inoperative, release gun trigger and wait until protection circuit resets allowing drive motor to feed wire again.;

Cut off welding wire at contact tip. Remove contact tip from tip adapter, and install new contact tip. Reinstall nozzle.;

CB1 protects unit from overload. If CB1 opens, unit shuts down.

Disconnect power before maintaining.

- Repair or replace cracked weld cable

- Clean and tighten weld terminals.;
