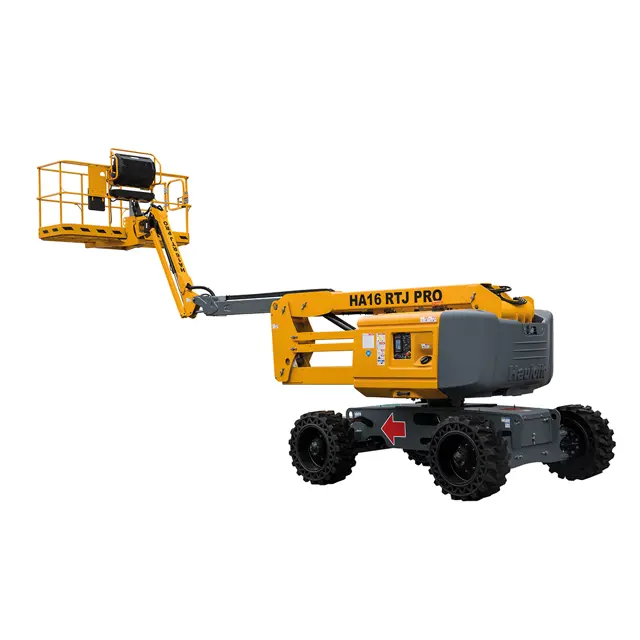

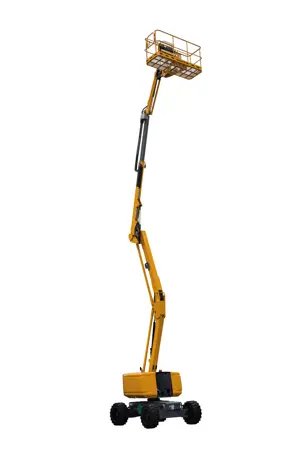

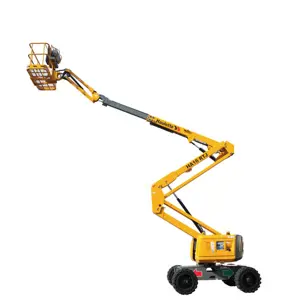

Haulotte Mobile Elevating Work Platform HA16RTJ PRO

- The Reinforced inspection is a thorough evaluation of the machine's structural components, to ensure proper functionality of the machine.

This evaluation must occur at a frequency of 5000 hours or every 5 years.

This inspection is the responsibility of the owner, and it must be conducted by a HAULOTTE Services® technician or by a competent company or person.

- The tire and rim are bonded together, both must be replaced if either is damaged.

Wheels replacement must be made in the following cases:

- Deformation or cracks on the rim.

- De-bonding between the interface of the steel and the rubber.

- Uniform wear to the wearing line:

• 830 x 285 wheel: Ø 830 mm / 33 in1025 x 365 wheel (Optional) : Ø 962 mm / 41 in

• 1025 x 365 wheel (Optional) : Ø 962 mm / 41 in

- Non-linear wearing of the tread profile (> 10%)

- 1 wheel stud is completely torn.

Warning: This inspection requires trained personnel with PPE!

Inspections must be carried out by a competent company or person.

The inspection results must be recorded in the safety register or machine log book controlled and overseen by the company manager.

This inspection is the responsibility of the owner, and inspections must be carried out by a competent company or person.

This inspection is in addition to the daily inspection.

If machine is not operational, report the issues to the maintenance team and stop the procedure

Choose the type of service done

Warning: Maintenance must be carried out by a competent company or person familiar with mechanical procedures.

Has the machine been out of service or not in use for more than 3 months?

If the machine has been out of service or not in use for more than 3 months, it must undergo a periodic inspection before being put back into service.

Did the machine pass the periodic inspection?

Enter the name of the company or person who performed the maintenance.

Enter the date when the maintenance was performed.

Upload a copy of the maintenance record to the machine's log book.

Sign off on the machine maintenance.

- The Major inspection is a thorough evaluation of the machine's integrity and proper functioning; after a normal service life of 10 years.

This evaluation must take place after 10 years of operation and then repeated every 5 years thereafter.

The severity of operating conditions may require frequent inspections.

This inspection is the responsibility of the owner, and it must be conducted by a HAULOTTE Services® technician or by a competent company or person.
