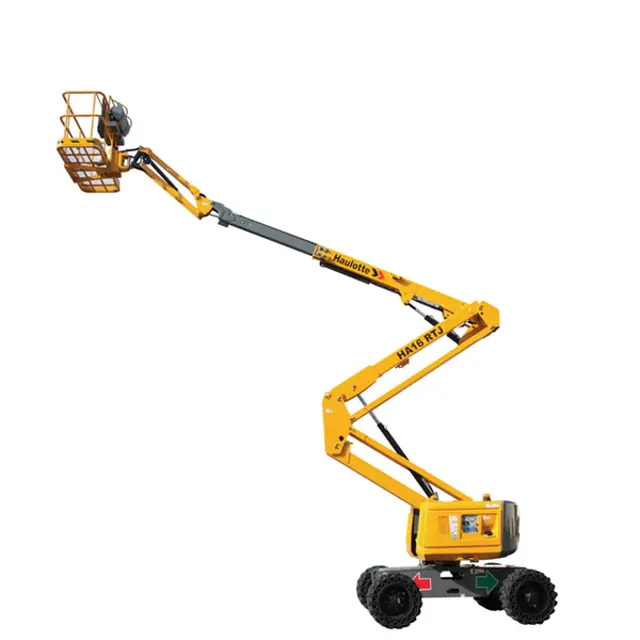

Haulotte Mobile Elevating Work Platform HA16RTJ

Warning: This maintenance check requires trained personnel with PPE!

Has the machine been out of service or not in use for more than 3 months?

If the machine has been out of service or not in use for more than 3 months, it must undergo a periodic inspection before being put back into service.

Was the maintenance carried out by a competent company or person familiar with mechanical procedures?

Name of the company or person who carried out the maintenance

Upload a copy of the maintenance operations performed

Sign off on the machine maintenance

- The tire and rim are bonded together, both must be replaced if either is damaged.

Wheels replacement must be made in the following cases:

- Deformation or cracks on the rim.

- De-bonding between the interface of the steel and the rubber.

- Uniform wear to the wearing line:

• 830 x 285 wheel: Ø 830 mm / 33 in1025 x 365 wheel (Optional) : Ø 962 mm / 41 in

• 1025 x 365 wheel (Optional) : Ø 962 mm / 41 in

- Non-linear wearing of the tread profile (> 10%)

- 1 wheel stud is completely torn.

Warning: This inspection must be carried out by a competent company or person.

Select the frequency of inspection

Inspection to detect any defect which could lead to an accident during routine use of the machine

Upload the inspection results to the safety register or machine log book

Conduct a thorough evaluation of the operation and safety features of the machine

- The Major inspection is a thorough evaluation of the machine's integrity and proper functioning; after a normal service life of 10 years.

This evaluation must take place after 10 years of operation and then repeated every 5 years thereafter.

The severity of operating conditions may require frequent inspections.

This inspection is the responsibility of the owner, and it must be conducted by a HAULOTTE Services® technician or by a competent company or person.

- The Reinforced inspection is a thorough evaluation of the machine's structural components, to ensure proper functionality of the machine.

This evaluation must occur at a frequency of 5000 hours or every 5 years.

This inspection is the responsibility of the owner, and it must be conducted by a HAULOTTE Services® technician or by a competent company or person.
