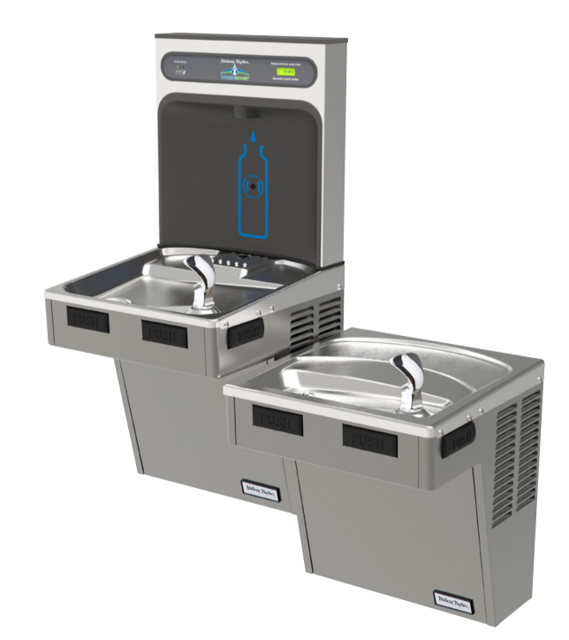

Halsey Taylor Bottle Filling Station and Cooler HAC8FSCWSBLQ*1F

Remove the screw fastening the hanger bracket to the back of the cooler

Hanger Bracket and Trap Mounting

Mount the hanger bracket and trap as shown in Figure 2 or 3

Is the hanger bracket supported securely?

Ensure the dimension from wall to center-line of trap

Anchor hanger securely to wall using all five (5) 7/16" dia. mounting holes

Install straight valve for 3/8" O.D. tube

Turn adjustment screw counter-clockwise until water flow from bubbler starts

Turn adjustment screw clockwise until water flow stops, then turn an additional 1/2 turn

Check for continuous flow at the end of the compressor cycle

Does continuous flow occur at the end of the compressor cycle?

If yes, turn cold control counterclockwise 1/4 turn

Remove two mounting screws with 5/32” Allen wrench holding top cover to Bottle Filler

Remove top cover and retain mounting screws for later use

Wall Mounting Plate Installation

Remove wall mounting plate from Bottle Filler

Place wall plate against wall on top of basin and center it

Mark the six mounting holes with a pencil

Remove wall mounting plate from wall

Is the wall mounting plate securely supported?

Hang the cooler on the hanger bracket

Ensure the hanger bracket is engaged properly in the slots on the cooler back

Loosen the screws holding the lower front panel at the bottom of cooler base

Loosen the screws at the top of the cooler base

Remove the front panel and set aside
