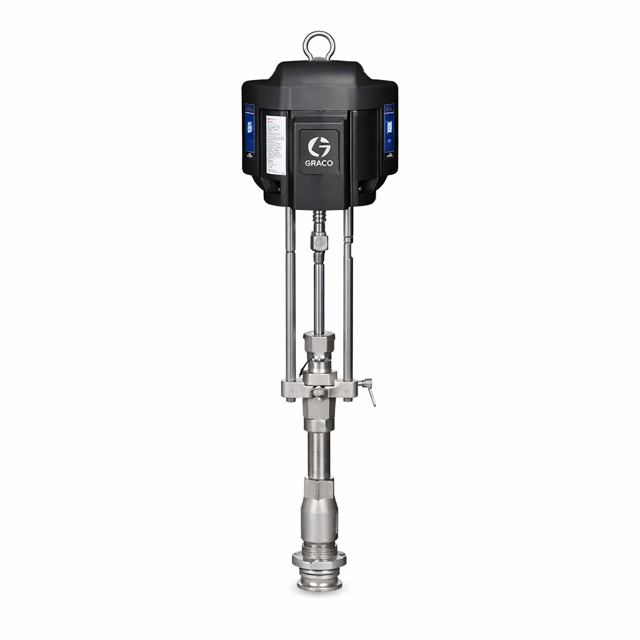

Graco Pump Package P23RCM

Create an account to install this asset package.

Maintenance Plans for Graco Pump Package Model P23RCM

Integrate maintenance plans directly into your work orders in MaintainX.

Pump Package Maintenance

Pressure Relief Procedure

Lock the gun/valve trigger.

Unlock the gun/valve trigger.

Hold a metal part of the gun/valve firmly to the side of a grounded metal pail, and trigger the gun/valve to relieve pressure.

Lock the gun/valve trigger.

Open the fluid line drain valve and the pump bleed valve (P). Have a container ready to catch the drainage.

Leave the pump bleed valve open until ready to spray again.

Is the spray tip/nozzle or hose completely clogged, or is pressure not fully relieved?

If yes, very slowly loosen the tip guard retaining nut, nozzle, or hose end coupling and relieve pressure gradually, then loosen completely. Clear the tip/nozzle or hose.

Run this procedure

Pump Package Adjustment

Warning: Keep hands and fingers away from the priming piston during operation and whenever the pump is charged with air.

Follow the Pressure Relief Procedure on page 11 before checking, clearing, or cleaning the priming piston.

Pump Priming and Adjustment

Supply fluid to the pump, per the requirements of your system.

Ensure the pump air regulator is closed.

Set the ram down air regulator to about 50 psi (3.5 bar).

Set the director valve to DOWN.

Reduce the air motor regulator pressure and open the air motor slider valve.

Hold a metal part of the gun/valve firmly to the side of a grounded metal pail and hold the trigger open.

Run this procedure

Initial 1 Week Torque Wet Cup Check

Pressure Relief Procedure

Lock the gun/valve trigger

Unlock the gun/valve trigger

Hold a metal part of the gun/valve firmly to the side of a grounded metal pail, and trigger the gun/valve to relieve pressure

Lock the gun/valve trigger

Open the fluid line drain valve and the pump bleed valve (P). Have a container ready to catch the drainage

Leave the pump bleed valve open until ready to spray again

Do you suspect that the spray tip/nozzle or hose is completely clogged, or that pressure has not been fully relieved?

If yes, very slowly loosen the tip guard retaining nut, nozzle, or hose end coupling and relieve pressure gradually, then loosen completely. Now clear the tip/nozzle or hose

Run this procedure

Torque Wet Cup Check

Pressure Relief Procedure

Lock the gun/valve trigger

Unlock the gun/valve trigger

Hold a metal part of the gun/valve firmly to the side of a grounded metal pail, and trigger the gun/valve to relieve pressure

Lock the gun/valve trigger

Open the fluid line drain valve and the pump bleed valve (P). Have a container ready to catch the drainage

Leave the pump bleed valve open until ready to spray again

Is the spray tip/nozzle or hose completely clogged, or is pressure not fully relieved?

If yes, very slowly loosen the tip guard retaining nut, nozzle, or hose end coupling and relieve pressure gradually, then loosen completely. Clear the tip/nozzle or hose

Run this procedure
