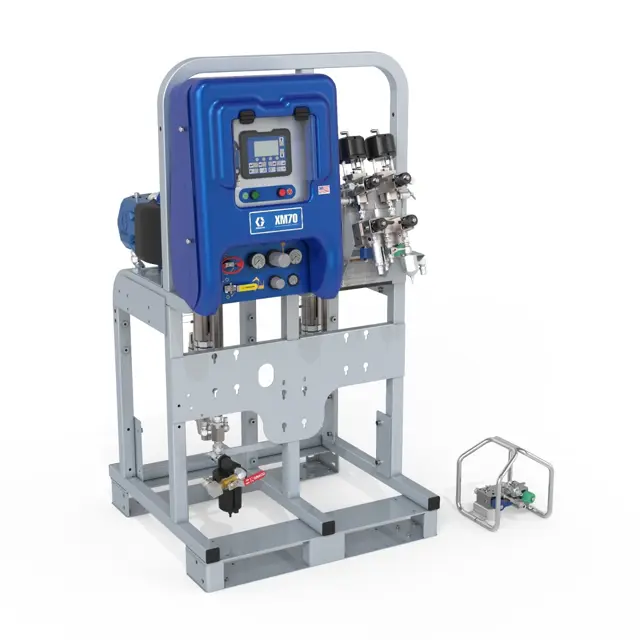

Graco Sprayer XM3N00

Create an account to install this asset package.

Maintenance Plans for Graco Sprayer Model XM3N00

Integrate maintenance plans directly into your work orders in MaintainX.

Initial 100 Hours/2 Weeks Gear Reducer Oil Change

NOTICE

To prevent air motor failure and possible damage to equipment, always keep the air motor properly lubricated using Air Motor Lubricant.

Air motor properly lubricated?

After the first 100 hours, or two weeks of operation, change the gear reducer oil.

Gear reducer oil changed?

Sign off on the gear reducer oil change

Run this procedure

2500 Hourly/6 Monthly Sprayer Maintenance

NOTICE

To prevent air motor failure and possible damage to equipment, always keep the air motor properly lubricated using Air Motor Lubricant.

Air motor properly lubricated?

Change the gear reducer oil every 2500 hours, or six months (whichever comes first) of operation under normal conditions. More frequent oil changes are needed under severe operating conditions or in atmospheres containing excessive moisture or abrasives. See your agitator manual for the oil changing procedure.

Gear reducer oil changed?

Every 2500 hours, or six months (whichever comes first) of operation, inspect the bearing block (see your agitator manual).

Bearing block inspected?

Sign off on the sprayer maintenance

Run this procedure

Agitator Air Motor Flushing

NOTICE: To prevent air motor failure and possible damage to equipment, always keep the air motor properly lubricated using Air Motor Lubricant.

Is the air motor operating sluggish or inefficiently?

If the air motor is operating sluggish or inefficiently, flush the air motor (see your agitator manual).

Upload a photo of the air motor after flushing

Sign off on the air motor flushing

Run this procedure

1 Monthly Heating Fluid Level Check

NOTICE: Freezing temperatures can cause damage that may result in the heating fluid leaking into the terminal enclosure. To avoid damage, do not expose the unit to freezing conditions.

Current heating fluid level

Is the heating fluid level within the acceptable range?

Amount of fluid added

Sign off on the heating fluid level check

Run this procedure

1 Daily Inlet Strainer Screen Cleaning

Ensure that all pumps are shut off and close the Y-strainer valve (ES)

Place a container under the strainer base to catch drain off when removing the strainer plug

Remove the screen from the strainer manifold. Thoroughly flush the mesh screen (MS) with compatible solvent and shake it dry

Inspect the screen. No more than 25% of the mesh should be restricted. If more than 25% of the mesh is blocked, replace the screen. Inspect the gasket and replace as needed

Ensure that the pipe plug (PP) is screwed into the strainer plug (SP). Install the strainer plug (SP) with the mesh screen (MS) and gasket (SG) in place and tighten. Do not over tighten the strainer plug--let the gasket make the seal

Open the Y-strainer valve (ES). Ensure that there are no leaks and wipe the equipment clean

Sign off on the daily inlet strainer screen cleaning

Run this procedure
