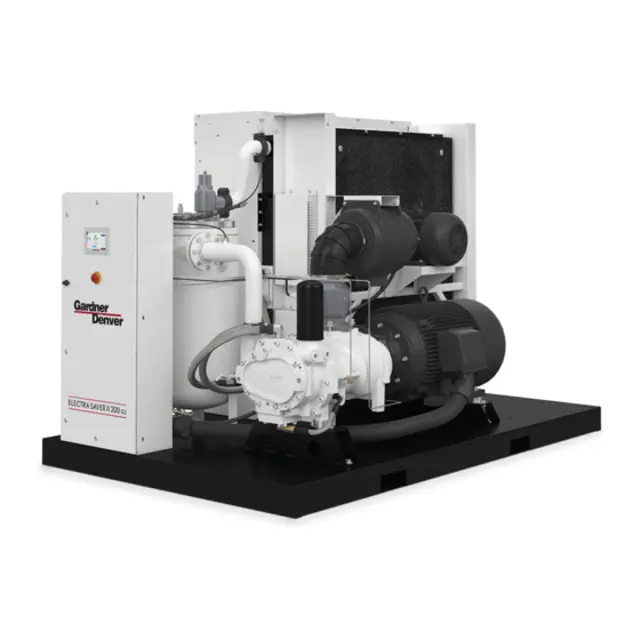

Gardner Denver Screw Air Compressor EBE_DH

Warning: Use only genuine Gardner Denver air filter elements on Gardner Denver compressor units.

Caution: Never operate the unit without the element. Never use elements that are damaged, ruptured or wet. Never use gaskets that won't seal.

Is the “CHANGE AIR FILTER” LED illuminated?

Upload a photo of the filter element before servicing

Does the filter element require cleaning?

If cleaning is not necessary, reinstall the filter element. If the element requires cleaning, follow steps 7, 8 and 9.

Was the element soaked for about 15 minutes in warm water with a mild non-sudsing detergent and rinsed thoroughly with clean water?

Is the element free from ruptures or cracks in the pleated media?

Is the gasket on the bottom (outlet end) of the element undamaged?

WARNING: Do not oil this element. Do not wash in other cleaning fluids. Never operate unit without element. Never use elements that are damaged or ruptured. Never use elements that won’t seal. Keep spare elements on hand to reduce downtime.

Visual inspection indicates a rupture, crack or pin hole in the pleated media

Number of cleanings performed on the element

Is the element sealed properly?

Store elements in a protected area free from damage, dirt and moisture. Handle filter parts with care.

Sign off on the filter element life maintenance

Filter Element – The element should be serviced when inspection indicates an accumulation of dirt on the outside of the element. Clean every 100 to 500 operating hours depending on dust conditions. Inspect every few days until experience determines the proper time interval for servicing.

1. Remove the element from the filter housing.

2. Blow off excess dirt with air nozzle. Direct air blast parallel to element pleats at a slight upward angle. Do not point air blast directly at the element.

3. Elements contaminated with dry dirt only:

(a) Mix a sufficient amount of warm water and household detergent to allow the element to be fully submerged.

(b) Place the element into the cleaning solution and allow to soak for five minutes. Agitate in solution for two more minutes. Elements contaminated with oil or greasy dirt deposits:

(a) Mix a sufficient amount of the following cleaning solution to allow the element to be fully submerged. To one gallon of lukewarm water add four tablespoons of mild house hold detergent and one–half teaspoon of trisodium phosphate. Mix well.

(b) Place element into cleaning solution and allow to soak for five minutes. Agitate in solution and allow to soak for five minutes. Agitate in solution for two minutes and remove.

Warning: This maintenance check requires trained personnel with PPE!

Number of times the filter has been cleaned

Visual inspection of the filter element

Upload a photo of the filter element

Pressure drop through the filter

Is the pressure drop below three (3) inches (76 mm) of water with the compressor running at full load?

Sign off on the filter element life maintenance

Warning: Operating conditions determine frequency of service.

Is the 'CHANGE AIR FILTER' message displayed?

If the 'CHANGE AIR FILTER' message is displayed, air filter requires servicing or changing.

Check the condition of the heavy-duty air filter

The air filter must receive proper maintenance if maximum service is to be obtained from the unit.

Has the air filter been properly maintained?

Establishing adequate and timely filter service is MOST IMPORTANT.

Has adequate and timely filter service been established?

An improperly maintained air filter can cause a loss of compressor air delivery.
