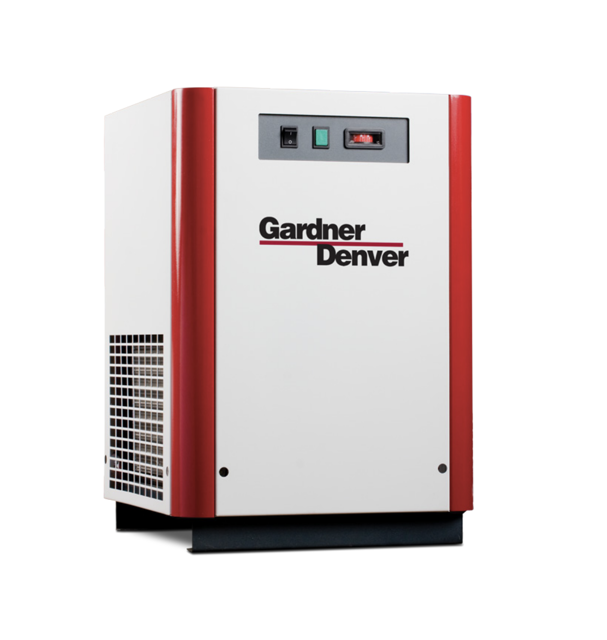

Gardner Denver Air Dryer RES360A7BN1
Create an account to install this asset package.
Integrate maintenance plans directly into your work orders in MaintainX.
1 Daily Air Dryer Maintenance
Check separator daily to be sure automatic drain is discharging.
NOTE: Units with two stage filtration have two sets of drains.
Blow down separator weekly by pushing test button on control panel.
Air-cooled - clean off accumulated dust and dirt from condenser coil monthly or as necessary in dirty environments.
Glycol Level Check
Warning: Use a mixture of four parts water to one part propylene glycol. DO NOT USE ETHYLENE GLYCOL.
Enter the current glycol level in the tank
Enter the amount of fluid added to the tank
Is the fluid height at the minimum required level (10-3/4 in)?
Sign off on the glycol level check
1 Yearly Moisture Separator/Oil Removal Filter Replacement
WARNING! THIS FILTER IS A PRESSURE CONTAINING DEVICE. DEPRESSURIZE BEFORE SERVICING.
Is the dryer isolated (inlet and outlet valves closed) or air supply shut off?
Depressurized filter by slowly opening manual drain bypass valve?
Upload a photo of the removed bowl
Cleaned filter bowl?
Upload a photo of the replaced moisture separator element
NOTE: Do not handle Oil Removal Filter elements by outside foam cover. Handle by bottom end cap only.
Upload a photo of the reassembled bowl to head
NOTE: Make certain o-ring is generously lubricated. (Use lubricant provided)
Access the parts list for your equipment in MaintainX.
Cabinet Panel - Top
C5002276
Cabinet Panel - Front
C5002315
Cabinet Panel - Rear
C5002284
Cabinet Panel - Left
C5002284
Cabinet Panel - Right Upper
C5002288
Cabinet Panel - Top
C5002276
Cabinet Panel - Front
C5002315
Cabinet Panel - Rear
C5002284
Cabinet Panel - Left
C5002284
Cabinet Panel - Right Upper
C5002288
Cabinet Panel - Top
C5002276
Cabinet Panel - Front
C5002315
Cabinet Panel - Rear
C5002284
Cabinet Panel - Left
C5002284
Cabinet Panel - Right Upper
C5002288
