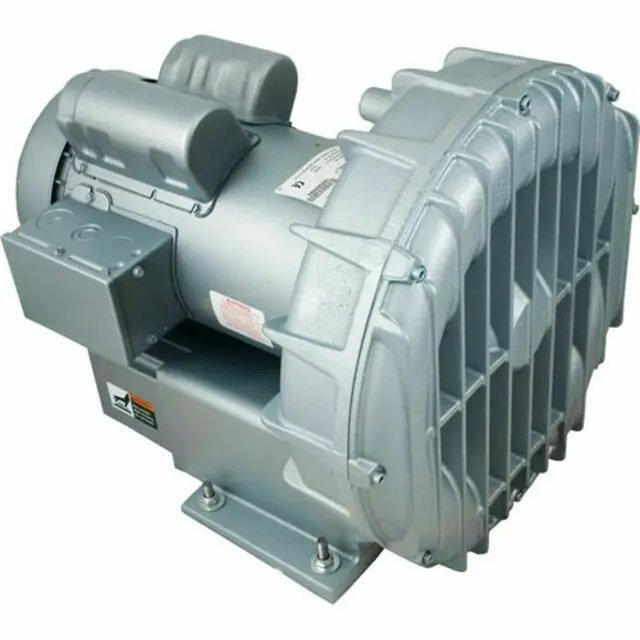

FPZ Blower SCL K08-TD-15.0

Inspect the cartridge filter for dirt and debris

Clean the cartridge filter if dirty

Replace the cartridge filter if in a dusty environment or if cleaning is insufficient

Measure the suction resistance after replacement

Verify machine has reached 25,000 working hours or 4 years of operation

Is the machine operating under normal working conditions?

Ensure machine is powered off and disconnected from power source

Remove the blower housing to access bearings

Replace old bearings with new ones

Remove #723 flange and #426 O-Ring by removing #908 screws.

Take away the silencers from the unit, being careful not to lose the #424 gaskets.

Extract the #720 panels from the silencer housings.

Clean up the #710 retaining screen.

If needed, reconstruct #425 seal using Loctite 598 or similar, after cleaning the sealing surfaces of any existing sealant.

Cleaning Instructions for SCL K07-TD / K08-TD

Remove impeller and intermediate cover

Remove mounting feet and spacers

Remove #230 impeller using a puller and #940 key if necessary

Reassemble components in reverse order
