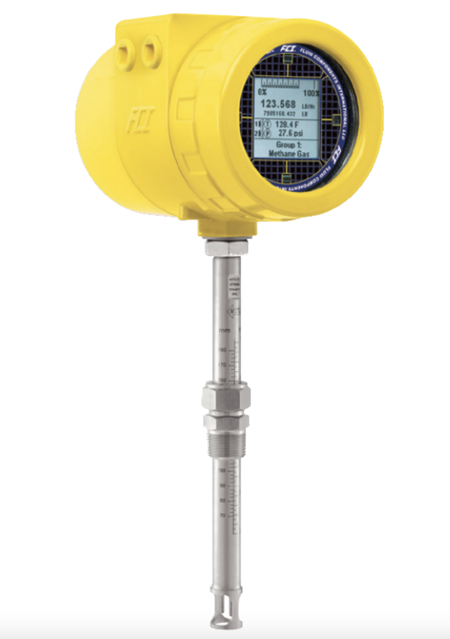

Fluid Components International Flowmeter ST100L-43H2000210F1EFF0001

Ensure all environmental isolation seals are properly maintained to avoid hazards to personnel.

Use standard ESD precautions when handling the electronics.

Flow Element Assembly Inspection

Remove the flow element for inspection based on historical evidence of debris, foreign matter, or scale build-up.

Ensure thermowells are free of excessive contaminants and are physically intact.

Is there any debris or residue build-up on the flow element?

Ensure all environmental isolation seals are properly maintained

Use standard ESD precautions when handling the electronics

Verify moisture barriers are adequate in the local enclosure

Verify moisture barriers are adequate in the remote enclosure

Check that no moisture is entering the local enclosure

Check that no moisture is entering the remote enclosure

Ensure all environmental isolation seals are properly maintained to avoid hazards to personnel.

Use standard ESD precautions when handling the electronics.

Flow Element Connections Inspection

Verify that all seals are performing properly.

Check for any leakage of the process media.

Inspect for deterioration of the gaskets.

Inspect for deterioration of the environmental seals.

Ensure all environmental isolation seals are properly maintained

Use standard ESD precautions when handling the electronics

Verify the calibration of the output

Refer to Chapter 4: Troubleshooting for calibration verification

Refer to 'ESD Precautions' on page 13

Ensure all environmental isolation seals are properly maintained

Use standard ESD precautions when handling the electronics

Electrical Connections Inspection

Inspect cable connections on terminal strips and terminal blocks

Verify that terminal connections are tight and physically sound

Check for signs of corrosion on terminal connections
