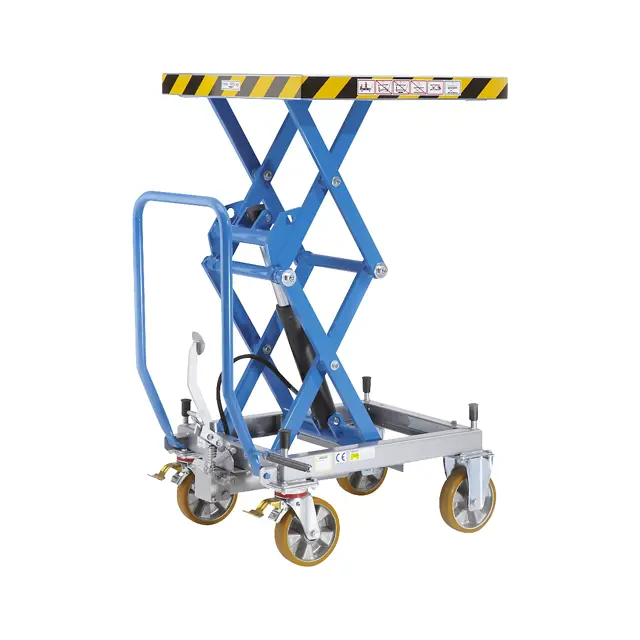

Eurokraft Scissor Lift Pallet Truck DSHW5-V

Create an account to install this asset package.

Maintenance Plans for Eurokraft Scissor Lift Pallet Truck Model DSHW5-V

Integrate maintenance plans directly into your work orders in MaintainX.

Scissor Lift Pallet Truck Cleaning

DANGER! Make sure that the device is not switched on.

Device switched off?

Lifting unit cleaned regularly?

Stickers on the device cleaned?

Are the stickers legible?

Order number for new stickers

Running faces of the rollers cleaned?

Sign off on the cleaning procedure

Run this procedure

Initial 50 Hours Hydraulic Oil Replacement

Lower the device with no load onto the inspection support.

Place an oil drip tray beneath the hydraulic cylinder.

Disconnect the hydraulic hoses from the cylinder and lay them into the oil drip tray.

Operate the hydraulic pump (raise) until no more oil comes out of the hoses.

Re-fit the hoses.

Remove the vent plug from the tank.

Fill with oil.

Please refer to the enclosed dimensions sheet for filling amounts.

Screw the vent plug back into the tank.

Run this procedure

250 Hourly Hydraulic Oil Level Replacement

Lower the device with no load onto the inspection support

Place an oil drip tray beneath the hydraulic cylinder

Disconnect the hydraulic hoses from the cylinder and lay them into the oil drip tray

Operate the hydraulic pump (raise) until no more oil comes out of the hoses

Re-fit the hoses

Remove the vent plug from the tank

Fill with oil

Please refer to the enclosed dimensions sheet for filling amounts

Screw the vent plug back into the tank

Run this procedure

1 Yearly Hydraulic Hoses & Hydraulic Oil Level Check

• Check hydraulic hose annually lines.

• Check hydraulic oil level.

• Hydraulic hoses must be checked annually for their safe condition. The test must be carried out by an expert.

Check the following:

• Can any damage be seen on the outer lining such as cracks, kinks, cuts, laking, chafe marks, brittleness, etc.?

• Does the hose deform when pressurised or depressurised?

• Are there any leaks between the hose and fittings?

• Does the hose work loose from the fittings?

• If you discover any damages replace the corresponding hose(s).

Run this procedure

Hydraulic Unit Maintenance

DANGER! Hydraulic oil can cause skin rashes and other injuries to health. Avoid prolonged skin contact. Wash thoroughly after any contact. Wear protective clothing!

Protect the environment: The handling and disposal of mineral oils is governed by laws. Bring any used oil to an authorised collection point. Further information is available from the pertinent authorities. Take care not to spill any hydraulic oil. Risk of fire! Take precautions to catch any spilt oil (lay out oilproof tarpaulin, provide a drip tray).

This device has been filled with biodegradable hydraulic oil.

Hydraulic oil meets the requirements of Water Hazard Class 1.

The instructions above should nevertheless be heeded.

Hydraulic oil is not miscible with water!

Hydraulic oil used

Run this procedure
