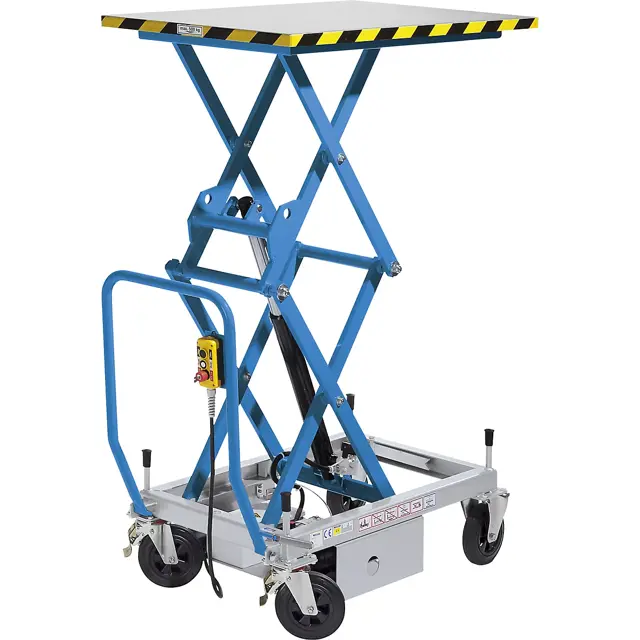

Eurokraft Scissor Lift Pallet Truck DSHW5-230V

• Check hydraulic hose annually lines.

• Hydraulic hoses must be checked annually for their safe condition. The test must be carried out by an expert.

• Can any damage be seen on the outer lining such as cracks, kinks, cuts, laking, chafe marks, brittleness, etc.?

• Does the hose deform when pressurised or depressurised?

• Are there any leaks between the hose and fittings?

• Does the hose work loose from the fittings?

• If you discover any damages replace the corresponding hose(s).

Lower the device with no load onto the inspection support.

Place an oil drip tray beneath the hydraulic cylinder.

Disconnect the hydraulic hoses from the cylinder and lay them into the oil drip tray.

Operate the hydraulic pump (raise) until no more oil comes out of the hoses.

Remove the vent plug from the tank.

Please refer to the enclosed dimensions sheet for filling amounts.

Screw the vent plug back into the tank.

Lower the device with no load onto the inspection support.

Place an oil drip tray beneath the hydraulic cylinder.

Disconnect the hydraulic hoses from the cylinder and lay them into the oil drip tray.

Operate the hydraulic pump (raise) until no more oil comes out of the hoses.

Remove the vent plug from the tank.

Please refer to the enclosed dimensions sheet for filling amounts.

Screw the vent plug back into the tank.

DANGER! Make sure that the device is not switched on.

Clean your lifting unit regularly

Clean the stickers (picture symbols) on the device

Clean the running faces of the rollers

Sign off on the cleaning procedure

Lower the device with no load onto the inspection support

Unscrew the vent plug on the hydraulic cylinders by 1-2 rotations

Found vent plugs on the cylinders?

If no vent plugs found, the cylinders have been designed and fitted to be self-venting

Actuate the hydraulic pump (raise) until the oil appears at the vent opening with no bubbles

Sign off on the venting procedure
