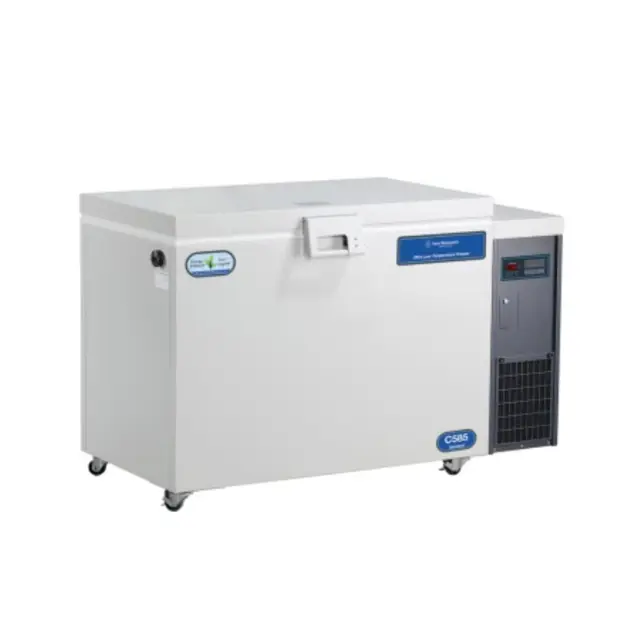

Eppendorf Freezer C585

NOTICE! Risk of material damage

Maintenance, adjustment and repair work should be carried out only by QUALIFIED, EXPERIENCED personnel who have been AUTHORIZED to undertake such work by Eppendorf or its authorized agents.

Failure to use authorized service agents will invalidate the warranty.

Serious damage to the freezer may result if the air intake is blocked. Check that there is no obstruction of the airflow to the freezer. The air intake filter must also be cleaned regularly.

Remove the filter from behind the grille by turning the thumbscrews ¼ turn and opening grille downward. The filter should be washed in warm soapy water and left to air dry before replacing.

Filter removed, cleaned and replaced?

The air intake grille must be cleaned regularly to keep it free from dust and debris. Under normal conditions, clean the grille once every three months. If the area around the freezer is very dusty or dirty, clean the grille more often.

NOTICE! Risk of material damage. Maintenance, adjustment and repair work should be carried out only by QUALIFIED, EXPERIENCED personnel who have been AUTHORIZED to undertake such work by Eppendorf or its authorized agents. Failure to use authorized service agents will invalidate the warranty.

Are you a qualified, experienced personnel authorized by Eppendorf or its authorized agents?

If not, stop the procedure and report to the supervisor.

Outer door hinges lightly lubricated with general-purpose oil or spray grease?

Handle mechanism lightly lubricated with general-purpose oil or spray grease?

Sign off on the freezer lubrication

NOTICE! Risk of material damage. Maintenance, adjustment and repair work should be carried out only by QUALIFIED, EXPERIENCED personnel who have been AUTHORIZED to undertake such work by Eppendorf or its authorized agents. Failure to use authorized service agents will invalidate the warranty.

NOTICE! Risk of material damage. Do not attempt to chip or scrape the ice with a sharp instrument. Allow the ice to melt naturally.

De-activate the alarm by switching the battery (alarm) switch (located behind the lockable panel on the front of the freezer) to off (0).

Unplug the freezer from the mains/electrical supply.

Leave the inner and outer doors or lids open.

Allow the accumulated ice to melt.

Dry and decontaminate the interior of the freezer.

When defrosting is complete, reconnect the freezer to the mains/electrical supply.

NOTICE! Risk of material damage

• Maintenance, adjustment and repair work should be carried out only by QUALIFIED, EXPERIENCED personnel who have been AUTHORIZED to undertake such work by Eppendorf or its authorized agents.

• Failure to use authorized service agents will invalidate the warranty.

WARNING! Risk of personal injury

• During routine maintenance, care must be taken to avoid any damage to the gaskets and sealing grommets of these enclosures; also check the gaskets and sealing grommets routinely to ensure their integrity.

Should any damage or deformity be detected, the gasket and/or sealing grommet must be replaced immediately.

• Failure to observe this safety warning will invalidate the warranty and could result in a dangerous situation.

NOTICE! Risk of material damage

• Maintenance, adjustment and repair work should be carried out only by QUALIFIED, EXPERIENCED personnel who have been AUTHORIZED to undertake such work by Eppendorf or its authorized agents.

• Failure to use authorized service agents will invalidate the warranty.

7.2.4 Replacing the inner door

1. Fully open the outer door of the freezer.

2. Fit door to hinge pins and close.

3. Check to ensure that inner door gasket is sealing against the freezer trim.

4. If required, adjust the latch retainer by loosening the screws and moving forward or backwards.
