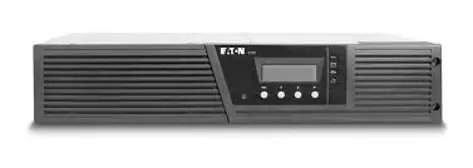

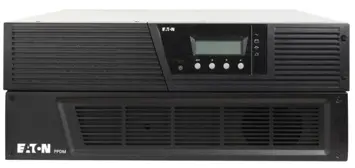

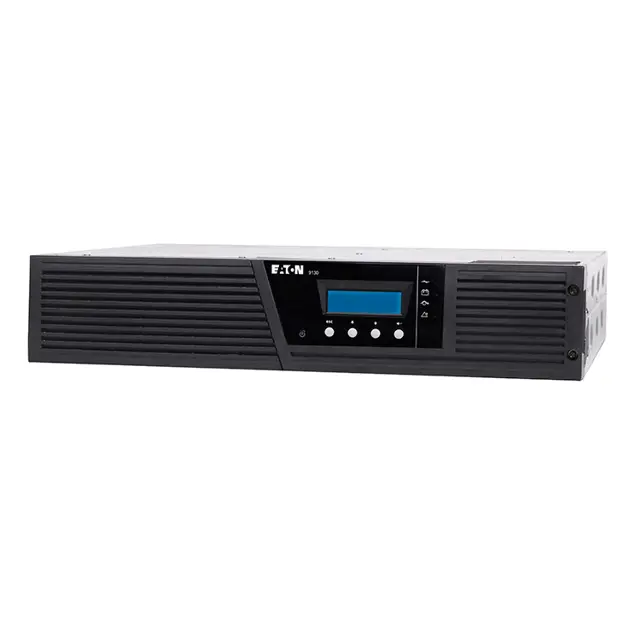

Eaton Uninterruptible Power System PW9130G1000R-XL2UAU

Need answers fast?
Explore the manual using AI.

Eaton Uninterruptible Power System PW9130G1000R-XL2UAU
Eaton Uninterruptible Power System PW9130G1000R-XL2UAU

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Eaton Uninterruptible Power System PW9130G1000R-XL2UAU

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Eaton Uninterruptible Power System PW9130G1000R-XL2UAU

Eaton Uninterruptible Power System PW9130G1000R-XL2UAU

Create an account to install this asset package.

Maintenance Plans for Eaton Uninterruptible Power System Model PW9130G1000R-XL2UAU

Integrate maintenance plans directly into your work orders in MaintainX.

5 Year UPS Internal Batteries Replacement

Check mark

Remove the UPS front cover

Check mark

Remove and retain the two screws holding the internal battery connector. Disconnect the internal battery connector

Check mark

Remove and retain the two screws holding the battery cover plate. Grasp an edge of the battery cover plate and pull it forward gently. Remove and retain the battery cover plate

Check mark

Carefully pull the handle on the battery tray and slide the battery package slowly out onto a flat, stable surface; use two hands to support the battery package

Check mark

Slide the new battery package into the cabinet. Push the battery package in firmly

Check mark

Replace the battery cover plate into the slots at left, threading the battery connector through the access slot. Reinstall the retained screws

Check mark

Reconnect the internal battery connector. Connect red to red, and black to black. Press the two parts tightly together to ensure a proper connection

Check mark

Place the connector between the screw mounts and reinstall the retained screws

Check mark

Replace the UPS front cover. To replace the cover, verify that the ribbon cable is protected, then insert the clips on the back of the cover into the cabinet and push firmly to snap the cover into place

Run this procedureArrow right

6 Month Battery Service

Check mark

Warning: Only trained personnel should perform this procedure

Check mark

Is the UPS connected to utility power?

Check mark

Recharge the battery

Check mark

Enter the battery recharge date from the shipping carton label

Check mark

Sign off on the battery service

Run this procedureArrow right

New Battery Testing

Check mark

Warning: Ensure the UPS is unplugged before starting the procedure

Check mark

Enter the date when the UPS was plugged in for charging

Check mark

Did the UPS charge for 48 hours?

Check mark

Was the menu option activated by pressing any button?

Check mark

Was CONTROL then START BATTERY TEST selected?

Check mark

Did the UPS start a battery test?

Check mark

Did the UPS transfer to Battery mode and discharge the batteries for 25 seconds?

Check mark

Did the front panel display “Battery test running” and the percentage of the test completed?

Check mark

Sign off on the battery testing

Run this procedureArrow right
