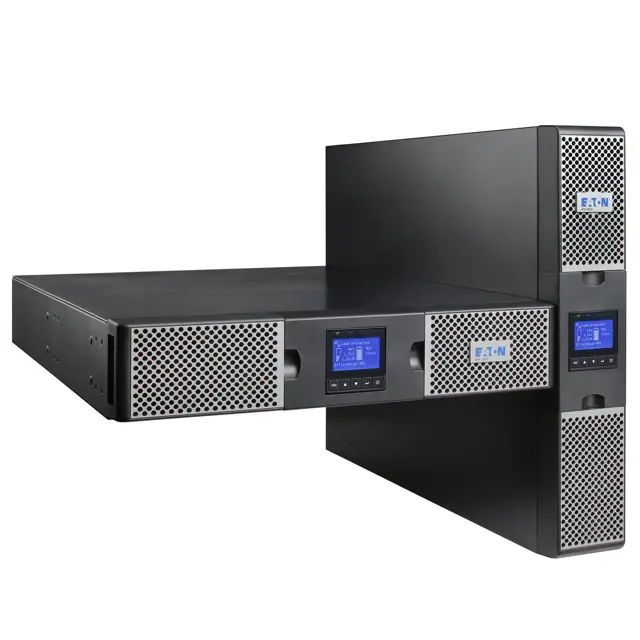

Eaton Uninterruptible Power System 9PX 3000 GLRT

Warning: Only trained personnel should perform these tests

Automatic battery test in constant charging mode successful?

Automatic battery test in ABM mode successful?

Enter the frequency of the tests

During the test, the UPS transfers to Battery mode and discharges the batteries for 10 seconds under load

Did the UPS successfully transfer to Battery mode?

Enter the discharge time of the batteries

Warning: Only trained personnel should perform this procedure

UPS connected to utility power?

Enter the charging time in hours

Enter the battery recharge date from the shipping carton label

Has the recharge date passed without recharging?

If the date has passed and the batteries were never recharged, do not use them. Contact your service representative

Sign off on the battery recharge

Warning: Ensure the UPS is disconnected and turned off before transportation

Note: Batteries are rated for a 3-5 year service life

Note: Service life varies depending on usage frequency and ambient temperature

Warning: Batteries used beyond expected service life may have reduced runtimes

Recommendation: Replace batteries every 4 years for peak efficiency

Date of last battery replacement

Is the UPS disconnected and turned off?

Sign off on the battery replacement
