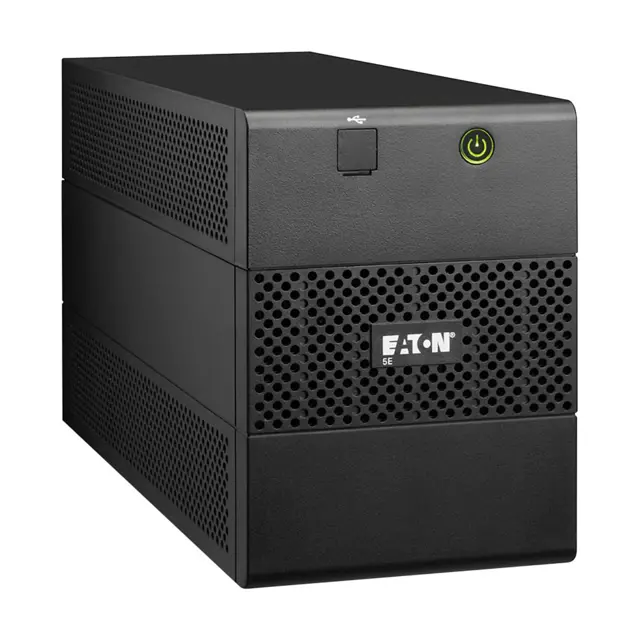

Eaton Uninterruptible Power System 5E900UB

Is the area around the equipment clean and dust free?

If the atmosphere is very dusty, has the outside of the system been cleaned with a vacuum cleaner?

Enter the current ambient temperature of the UPS location

Warning: Only trained personnel should perform this procedure.

Is the equipment stored for a long period?

If yes, proceed to the next step. If no, skip to step 5.

Recharge the battery by connecting the UPS to utility power.

Enter the charging time in hours.

Eaton recommends that the batteries charge for 48 hours after long-term storage.

Enter the battery recharge date from the shipping carton label.

If the date has passed and the batteries were never recharged, do not use them.

Enter the contact details of your service representative.

- The batteries are rated for a 3-5 year service life. The length of service life varies, depending on the frequency of usage and ambient temperature (life divided by 2 each 10 °C above 25 °C)

- Batteries used beyond expected service life will often have severely reduced runtimes

- Batteries runtime will be reduced at low temperature (below 10 °C)

- Replace batteries at least every 4 years to keep units running at peak performance;
