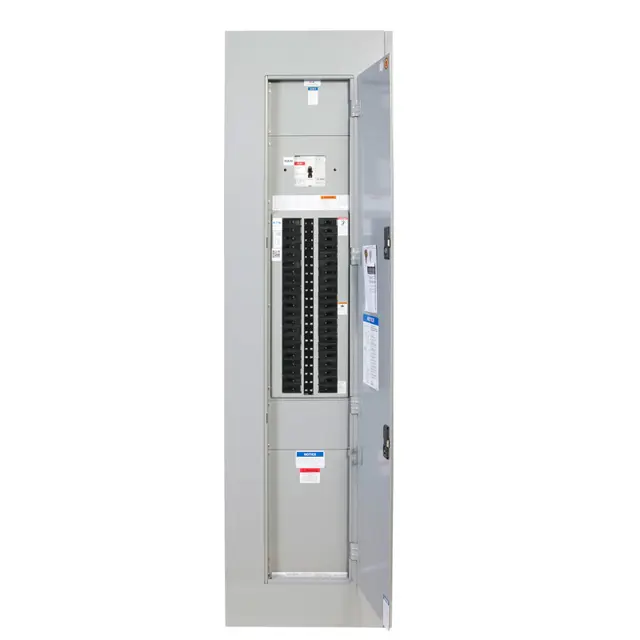

Eaton Eaton Distribution Panel PRL2A PRL2A

Check all grills and ventilation ports for obstructions and accumulations of dirt

Clean ventilation ports, if necessary

For switchboards installed outdoors, inspect the air space under the switchboard to be sure that it is clean and clear of debris, leaves, and obstructions

Sign off on the ventilation maintenance

Inspect bus bar and cables for visible damage

Visually inspect connections for overheating and damage

All bus bar and cable connections checked and torqued in accordance with labeling on the switchboard

Inspect for broken wire strands and pinched or damaged insulation on cable connections

Warning: This maintenance check requires trained personnel with PPE!

Visual check for damage on bus bar and structure insulation

Upload a photo of the damaged parts

Insulation material dry and clean

Sign off on the insulation maintenance

- Check all wiring connections for tightness, including those at the current and potential transformers, if present, and at all terminal blocks

- Check all secondary wiring connections to ensure that they are properly connected to the switchboard ground bus, where indicated

- Look for broken wire strands and pinched or damaged insulation;

Switch mechanism is turned to the OFF position

Visual inspection of the switch contacts, blades, and mechanism to ensure that the mechanism is in the OPEN/OFF position

Fuses are of the proper class, ampere, voltage, and interrupting rating

Non–current-limiting fuses are not used as replacements for current-limiting fuses

Rejection mechanisms that are provided to prevent the installation of the incorrect class of fuse are not defeated

Sign off on the fuse replacement
