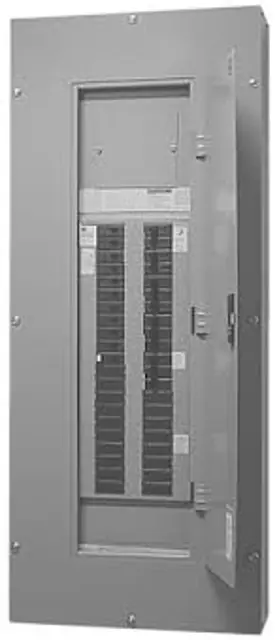

Eaton Eaton Distribution Panel PRL1B PRL1B

Warning: This maintenance check requires trained personnel with PPE!

Visual check for damage on bus bar and structure insulation

Upload a photo of the damaged parts

Choose the type of service done

Insulation material dry and clean?

Sign off on the insulation maintenance

Visual inspection for signs of discoloration, cracking, scorching, overheating, or broken parts

Operating mechanism opens and closes properly

Sign off on the circuit breaker inspection

Warning: Ensure the switchboard is de-energized before starting the cleaning process

Upload a photo of the switchboard before cleaning

Dust and debris removed from bus bars, connections, supports, and enclosure surfaces?

Switchboard wiped clean with a lint-free cloth?

Warning: Do not use solvents to clean equipment, as damage to surfaces can occur

Was compressed air used in cleaning?

Warning: Do not use compressed air in cleaning. It may imbed the contaminants within overcurrent devices, metering equipment, and other components

Switching mechanism and fuse connections visually inspected

Fusible devices inspected for signs of discoloration, cracking, scorching, overheating, or broken parts

Any worn parts or the entire switch replaced

Check all grills and ventilation ports for obstructions and accumulations of dirt

Clean ventilation ports, if necessary

For switchboards installed outdoors, inspect the air space under the switchboard to be sure that it is clean and clear of debris, leaves, and obstructions

Sign off on the ventilation maintenance
