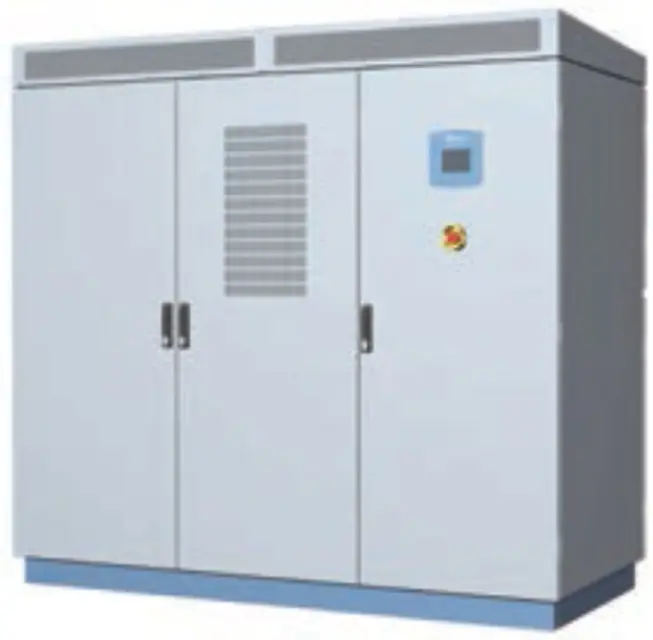

Delta Electronics Inverter C1000

1. Rotate the handle and then open the rear panel door.

2. Loosen the screws securing the air filter cover to the rear panel door and then open the cover. (Torque: 25 Kgf-cm)

1. At least 3 months for replacement of the new vent filters is recommended.

2. We recommend inspecting the vent filters each month, clean or replacement if necessary.

3. If the vent filters haven’t been replaced for a long time, poor heat dissipation may result in the damage of cooling fans.

1. Rotate the handle and then open the rear panel door.

2. Disconnect the connectors of the fan modules.

3. Loosen the screws and nuts securing the bottom fan module to the chassis and remove the module. (Torque: 25 Kgf-cm)

1. Open the front door of the central inverter.

2. Loosen the nuts on the plates of air outlets.

3. Move the plates of air outlets to the right.
