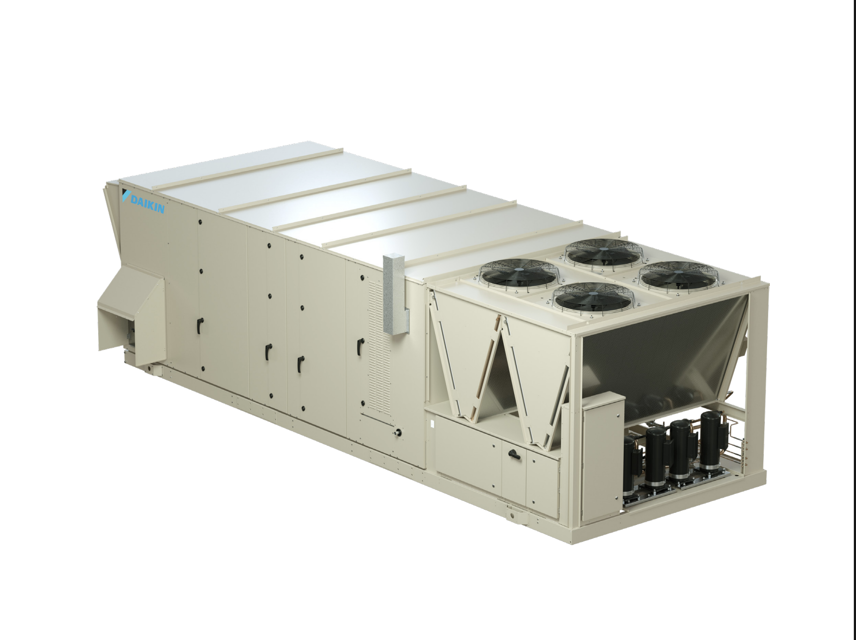

The Daikin Packaged Rooftop System DPSA031A4BHCMEOB02450DGG2LEV0P is a high-efficiency HVAC solution designed for commercial applications. This robust system offers reliable heating and cooling performance, ensuring optimal indoor comfort while minimizing energy consumption. Ideal for various building types, it combines advanced technology with ease of maintenance.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Daikin Packaged Rooftop System DPSA031A4BHCMEOB02450DGG2LEV0P

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Daikin Packaged Rooftop System DPSA031A4BHCMEOB02450DGG2LEV0P

Create an account to install this asset package.

Maintenance Plans for Daikin Packaged Rooftop System Model DPSA031A4BHCMEOB02450DGG2LEV0P

Integrate maintenance plans directly into your work orders in MaintainX.

1 Monthly Cabinet Maintenance

Open a door on each section

Verify that no moisture is accumulating in the unit

Verify that no debris is accumulating in the unit

Run this procedure

1 Monthly Heating System Maintenance

Check cabinet air filters and replace if dirty

After heavy snowfall verify that combustion air intakes are not blocked by snow

Periodically check during periods of snow accumulation as drifting may also lead to combustion air intake blockage

Run this procedure

6 Monthly Rooftop System Maintenance

Check combustion inducer fan for dirt buildup and lint

Check combustion air intake louvers and flue box/vent for accumulation of dirt and debris

Inspect and clean flue tubes and combustion chamber

Keep burner vestibule clean

Dirt and debris can result in poor combustion and lower efficiency

Sign off on the rooftop system maintenance

Run this procedure

1 Yearly Air Filters Maintenance

Check vent terminal screens for blockages and accumulation

Heater and the Venting System: Shall be inspected once a year by a qualified service agency

Gas Train: Check all valves, piping and connections for leakage with a rich soap solution or UL 913 combustible gas leak detector. Any bubbling is considered a leak and must be eliminated.

Inspect and clean flame rod, ignition electrode, and burner manifold

Condensate Pan and Drain: Remove any debris that may have accumulated in the drain pain and drain

Special Weather Events

After heavy snowfall, verify that combustion air intakes are not blocked by snow

Periodically check during periods of snow accumulation as drifting may also lead to combustion air intake blockage

Sign off on the air filters maintenance

Run this procedure

9000 Hours / 1 Yearly Rooftop System Maintenance

UV Light Bulbs Replacement

Disconnect power to unit and UV lamps

Disconnect power harness at the base of the sheet metal rack holding the UV lamps

Disconnect metal conduit power harness connected to the UV lamp

Remove lamps from the right side of the unit

Remove the 61\ bulbs by unscrewing the 4 fasteners at the top and bottom corners of the sheet metal rack

Install new bulbs and connect to a power harness, slide the rack back into the unit and reinstall the 4 mounting screws on the corners. Reconnect the power harness at the bottom right corner of the rack

PCO Panels Cleaning

Wash PCO panels with low pressure water and leave to air dry

Run this procedure
