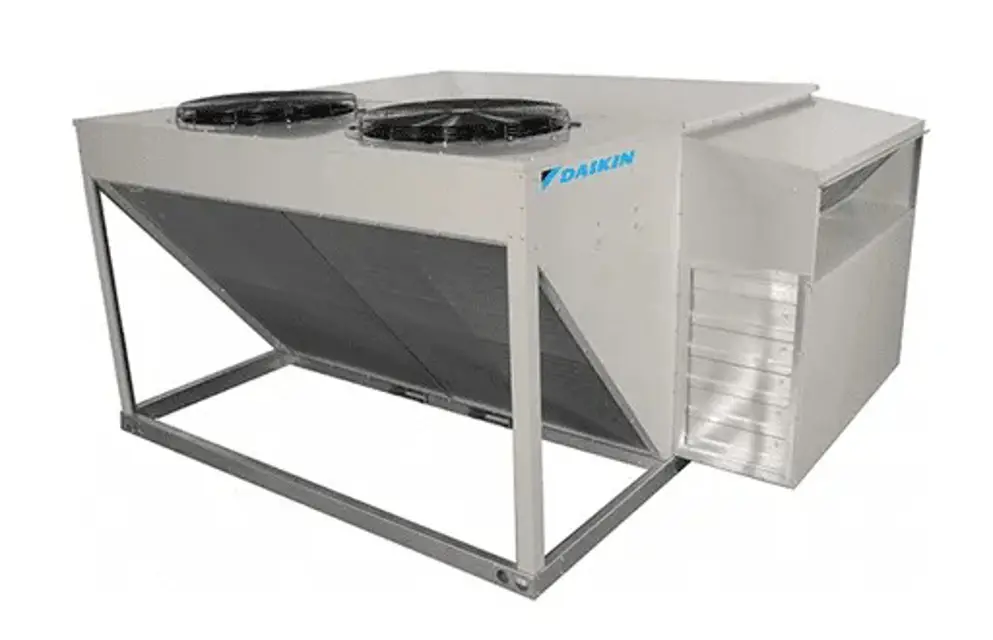

Daikin Packaged Rooftop System DPS028AHGMG4DV-4

The Rebel unit has many configurable options that can affect the refrigerant charge. Actual unit charge is given on the unit's data plate found on the inside of the control panel

The Rebel unit uses electronic expansion valves that maintain peak efficiency. Liquid sub-cooling and suction super heat float and should not be used as an indication that charge needs to be added or removed from the system

If a leak is suspected, the full charge should be removed and weighed. Weight should be compared against the unit nameplate data. Unit should be recharged with the amount given on the unit nameplate

POE and PVE oil is hygroscopic and does absorb moisture when exposed to atmosphere. Steps should be taken to minimize exposure time to atmosphere during any maintenance where the sealed system is to be opened

Rebel 003-015 refrigerant systems use only Polyvinylether (PVE) oil. Rebel 016-028 refrigerant systems use only Polyester (POE) oil

NOTICE: Do not use POE oil in DPS 003-015 refrigerant systems and do not use PVE oil in DPS 016-028 refrigerant systems

The entire system must be evacuated using a suitable vacuum pump

The quality of vacuum is measured using a suitable micron gauge that has been calibrated

Warning: This service requires trained personnel with PPE!

Phase voltage monitor functional?

If phase voltage monitor is not functional, report the issues to the maintenance team and stop the procedure

Issues found during the service

Check combustion inducer fan for dirt buildup and lint

Check combustion air intake louvers and flue box/vent for accumulation of dirt and debris

Inspect and clean flue tubes and combustion chamber

Keep burner vestibule clean. Dirt and debris can result in poor combustion and lower efficiency

Sign off on the rooftop system maintenance

Prepare for storage control compartment

Is the electronic control equipment in the unit stored in a 5% to 95% RH (non-condensing) environment?

Is there a heat source (light bulb) in the main control panel to prevent the accumulation of atmospheric condensate within the panel?

Enter the location and wattage of the heat source

Is the heat source functional and adequate for current conditions?

Sign off on the rooftop system maintenance

Check vent terminal screens for blockages and accumulation

Heater and the Venting System shall be inspected once a year by a qualified service agency.

Check all valves, piping and connections of Gas Train for leakage with a rich soap solution or UL 913 combustible gas leak detector. Any bubbling is considered a leak and must be eliminated.

Inspect and clean flame rod, ignition electrode, and burner manifold

Remove any debris that may have accumulated in the drain pain and drain

Sign off on the rooftop system maintenance
