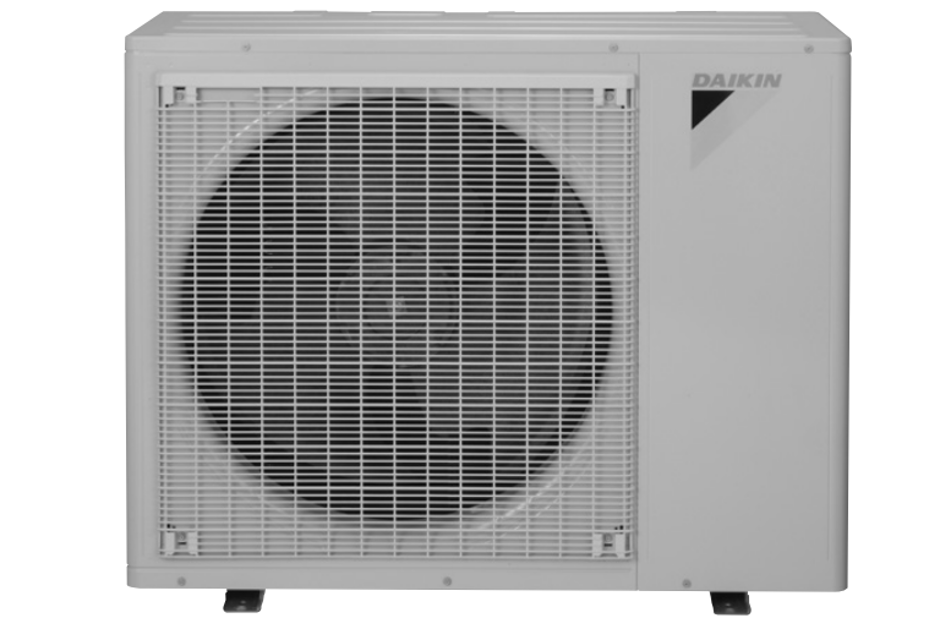

Daikin Outdoor Unit Cold Climate Multi-Split Type Air Conditioner 2MXLH18WVJU9

Need answers fast?
Explore the manual using AI.

Daikin Outdoor Unit Cold Climate Multi-Split Type Air Conditioner 2MXLH18WVJU9
Daikin Outdoor Unit Cold Climate Multi-Split Type Air Conditioner 2MXLH18WVJU9

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Daikin Outdoor Unit Cold Climate Multi-Split Type Air Conditioner 2MXLH18WVJU9

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Daikin Outdoor Unit Cold Climate Multi-Split Type Air Conditioner 2MXLH18WVJU9

Daikin Outdoor Unit Cold Climate Multi-Split Type Air Conditioner 2MXLH18WVJU9

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Unit Cold Climate Multi-Split Type Air Conditioner Model 2MXLH18WVJU9

Integrate maintenance plans directly into your work orders in MaintainX.

Inverter Analyzer Check

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Power turned off?

Check mark

Install an inverter analyzer instead of a compressor.

Check mark

Charged voltage of the built-in smoothing electrolytic capacitor dropped to 10 VDC or below?

Check mark

Terminals removed from the compressor?

Check mark

Terminals connected to the terminals of the inverter analyzer?

Check mark

Warning: Be careful not to let the terminals (U,V,W) touch each other. Otherwise, high voltage is applied.

Check mark

Power transistor test operation activated from the outdoor unit?

Check mark

Diagnose according to 6 LEDs lighting status.

Run this procedureArrow right

Outdoor Fan Motor Check

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Voltage applied

Check mark

Voltage of 320 ± 30 V is applied

Check mark

Set operation OFF and power OFF. Disconnect the connector S70.

Check mark

Voltage between the pins 4 - 7

Check mark

Voltage between the pins 4 - 7 is 320 VDC

Check mark

Control voltage between the pins 3 - 4

Check mark

Control voltage between the pins 3 - 4 is 15 VDC

Check mark

Rotation command voltage between the pins 2 - 4

Run this procedureArrow right

Power Supply Waveform Check

Check mark

Warning: This check requires trained personnel with PPE!

Check mark

Measure the power supply waveform between No. 1 and No. 2 on the terminal strip

Check mark

Is the power supply waveform a sine wave?

Check mark

Upload a photo of the waveform

Check mark

Is there waveform disturbance near the zero-cross?

Check mark

Sign off on the power supply waveform check

Run this procedureArrow right

Main Circuit Short Check

Check mark

Check to make sure that the voltage between (+) and (–) of the diode bridge (DB1) is about 0 V before checking

Check mark

Measure the resistance between the pins of the DB1 referring to the table below.

Check mark

If the resistance is infinity or less than 1 k, short circuit occurs on the main circuit.

Check mark

5MXS, 4MXL(H)

Check mark

1. Turn the power off.

Check mark

2. Remove the top plate (10 screws).

Check mark

3. Remove the right side plate (6 screws).

Check mark

4. Remove the front plate (1 screw).

Check mark

The front plate is heavy, so take care.

Run this procedureArrow right

Electronic Expansion Valve Check

Check mark

EV connector correctly inserted in the PCB

Check mark

Match the EV unit number and the connector number

Check mark

All EVs generate latching sound after power cycle

Check mark

If any EV does not generate latching sound, proceed to next step

Check mark

Continuity between pins 5 - 1

Check mark

Continuity between pins 5 - 2

Check mark

Continuity between pins 5 - 3

Check mark

Continuity between pins 5 - 4

Check mark

If there is no continuity between the pins, the EV coil is faulty

Run this procedureArrow right
