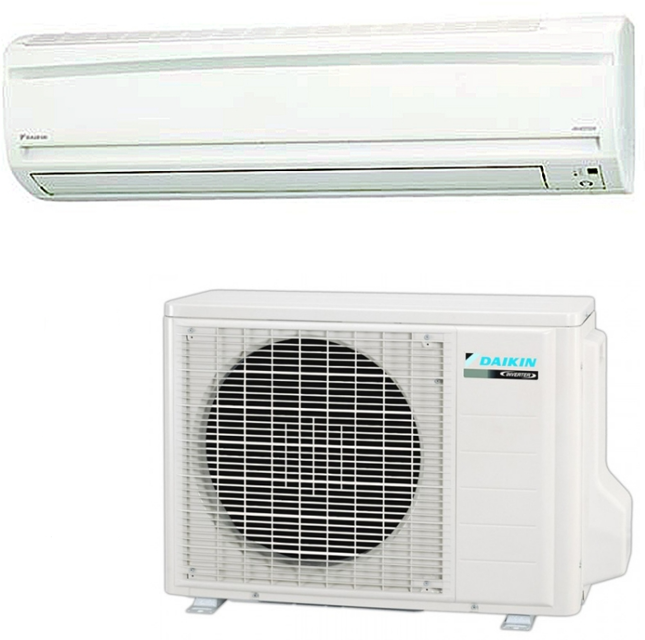

Daikin Outdoor Heat Pump RX60G2V1B

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Heat Pump Model RX60G2V1B

Integrate maintenance plans directly into your work orders in MaintainX.

Power Module Check

Check No.22: Power Module Check

Voltage between (+) and (–) of the power module is about 0 V

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Measure resistance between the terminals of the power module and the terminals of the compressor with a multimeter

Evaluate the measurement results

Sign off on the power module check

Run this procedure

Thermistor Resistance Check

Warning: Ensure the device is powered off before starting the procedure

Disconnect the connectors of the thermistors from the PCB

Measure the resistance of each thermistor using a multimeter

Remove the PCB from the control PCB to measure the resistance of the room temperature thermistor

Remove the thermistor and measure the resistance of the indoor heat exchanger thermistor

Sign off on the thermistor resistance check

Run this procedure

Rotation Pulse Check

Warning: This procedure requires trained personnel with PPE!

Set operation off and power off. Disconnect the connector S70.

Voltage between the pins 4 - 7

Control voltage between the pins 3 - 4

Rotation command voltage between the pins 2 - 4

Keep operation off and power off. Connect the connector S70.

Number of pulses (0 ~ 15 VDC) at the pins 1 - 4 when the fan motor is rotated 1 turn by hand.

Is the fuse intact?

If NG in step 2 → Defective PCB → Replace the outdoor unit PCB (main PCB).

Run this procedure

Power Supply Waveforms Check

Check No.11: Power Supply Waveforms Check

Measure the power supply waveform between No. 1 and No. 2 on the terminal board

Check if the power supply waveform is a sine wave (Fig.1)

Check if there is waveform disturbance near the zero-cross (sections circled in Fig.2)

Upload a photo of the waveform

Sign off on the power supply waveforms check

Run this procedure

Capacitor Voltage Check

Warning: This check requires trained personnel with PPE!

Before this check, be sure to check the main circuit for short circuit.

Circuit breaker still on?

With the circuit breaker still on, measure the voltage according to the drawing of the model in question. Be careful never to touch any live parts.

Voltage between P (+) and N (–)

Is the voltage 50 V or less?

The surface of the test points (P, N) may be covered with the coating. Be sure to make firm contact between the multimeter probes and the test points.

Sign off on the capacitor voltage check

Run this procedure
