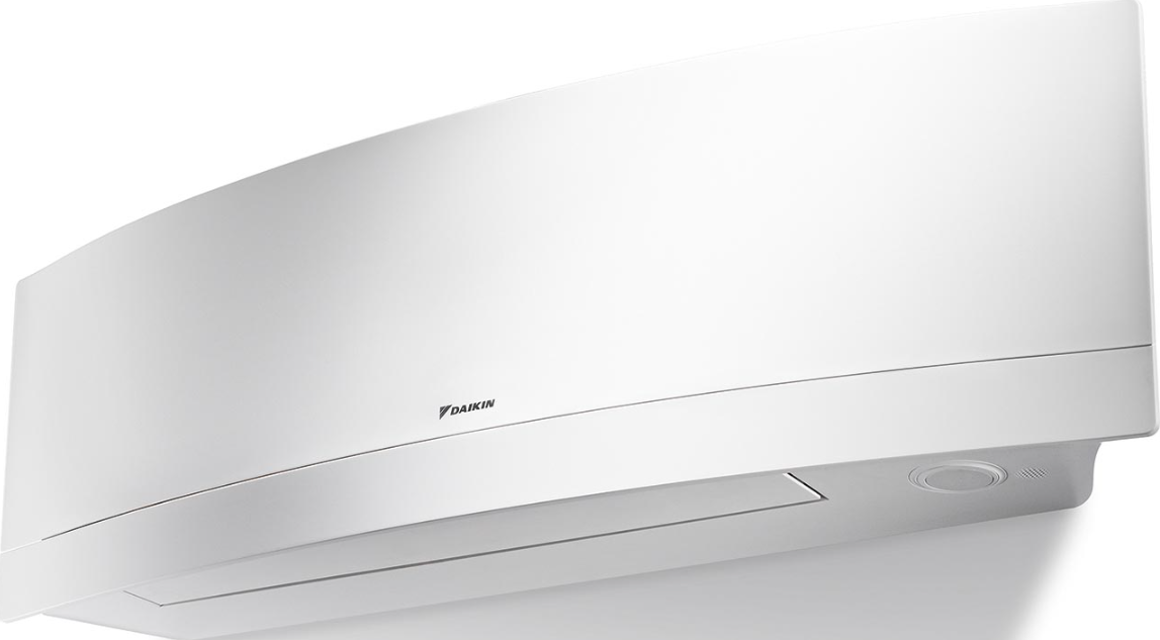

Daikin Indoor Unit Wall Mounted Type FTXJ35LV1BW

Create an account to install this asset package.

Maintenance Plans for Daikin Indoor Unit Wall Mounted Type Model FTXJ35LV1BW

Integrate maintenance plans directly into your work orders in MaintainX.

Main Circuit Short Check

Warning: Ensure the voltage between (+) and (–) of the diode bridge (DB1) is approximately 0 V before checking.

Enter the voltage between (+) and (–) of the diode bridge (DB1)

Measure the resistance between the pins of the DB1.

Enter the resistance between the pins of the DB1

Is the resistance ∞ or less than 1 kΩ?

If the resistance is ∞ or less than 1 kΩ, short circuit occurs on the main circuit.

Sign off on the main circuit short check

Run this procedure

Power Module Check

Warning: Ensure the voltage between (+) and (-) of the power module is approximately 0 V before proceeding.

Voltage between (+) and (-) of the power module is approximately 0 V?

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Compressor harness connector successfully disconnected?

Measure resistance between the (+) or (-) terminal of the power module and the U, V, or W terminal of the compressor with a multimeter.

Enter the resistance measurement

Evaluate the measurement results

Sign off on the power module check

Run this procedure

Inverter Analyzer Check

Characteristics: Inverter analyzer: RSUK0917C

Warning: Be sure to turn the power off before starting the procedure.

Power turned off?

Install an inverter analyzer instead of a compressor.

Inverter analyzer installed?

Note: Make sure the charged voltage of the built-in smoothing electrolytic capacitor drops to 10 VDC or below before carrying out the service work.

Charged voltage of the built-in smoothing electrolytic capacitor dropped to 10 VDC or below?

Remove the terminals from the compressor.

Terminals removed from the compressor?

Run this procedure

Rotation Pulse Check

Check No.16:

20/25/35 class

1. Check that the control voltage between the pins 10 - 11 is 15 VDC.

2. Check if the Hall IC generates the rotation pulse (0 ~ 15 VDC) 4 times between the pins 10 - 12, 10 - 13, when the fan motor i/s manually rotated once.

50 class

Make sure that the voltage of 320 ± 30 V is applied.

1. Set operation off and power off. Disconnect the connector S70.

2. Check that the voltage between the pins 4 - 7 is 320 VDC.

3. Check that the control voltage between the pins 3 - 4 is 15 VDC.

Run this procedure

Power Supply Waveforms Check

Check No.11

Measure the power supply waveform between No. 1 and No. 2 on the terminal board

Check if the power supply waveform is a sine wave (Fig.1)

Check if there is waveform disturbance near the zero-cross (sections circled in Fig.2)

Upload a photo of the waveform
