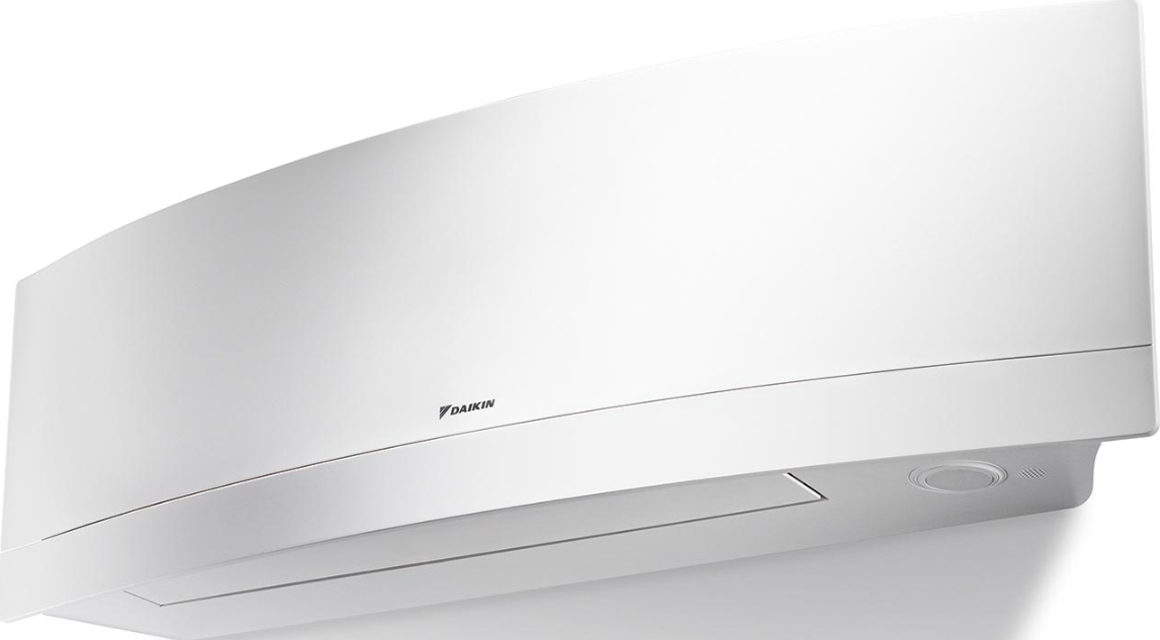

Daikin Indoor Unit Wall Mounted Type FTXJ20LV1BS

Need answers fast?
Explore the manual using AI.

Daikin Indoor Unit Wall Mounted Type FTXJ20LV1BS
Daikin Indoor Unit Wall Mounted Type FTXJ20LV1BS

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Daikin Indoor Unit Wall Mounted Type FTXJ20LV1BS

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Daikin Indoor Unit Wall Mounted Type FTXJ20LV1BS

Daikin Indoor Unit Wall Mounted Type FTXJ20LV1BS

Create an account to install this asset package.

Maintenance Plans for Daikin Indoor Unit Wall Mounted Type Model FTXJ20LV1BS

Integrate maintenance plans directly into your work orders in MaintainX.

Electronic Expansion Valve Check

Check mark

EV connector correctly connected to the PCB

Check mark

EV generates a latching sound when power is turned off and on again

Check mark

Continuity confirmed when connector is disconnected and checked with a multimeter

Check mark

Check the continuity between the pins

Check mark

EV coil is not faulty

Check mark

Outdoor unit PCB is not faulty

Check mark

Sign off on the electronic expansion valve check

Run this procedureArrow right

Power Supply Waveforms Check

Check mark

Check No.11

Check mark

Measure the power supply waveform between No. 1 and No. 2 on the terminal board

Check mark

Check the waveform disturbance

Check mark

Check if the power supply waveform is a sine wave (Fig.1)

Check mark

Check if there is waveform disturbance near the zero-cross (sections circled in Fig.2)

Check mark

Upload a photo of the waveform

Check mark

Sign off on the power supply waveforms check

Run this procedureArrow right

Inverter Analyzer Check

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Is the power turned off?

Check mark

If power is not turned off, stop the procedure and turn off the power

Check mark

Install an inverter analyzer instead of a compressor

Check mark

Ensure the charged voltage of the built-in smoothing electrolytic capacitor drops to 10 VDC or below before carrying out the service work

Check mark

Remove the terminals from the compressor

Check mark

Connect the terminals to the terminals of the inverter analyzer

Check mark

Warning: Be careful not to let the terminals (U,V,W) touch each other. Otherwise, high voltage is applied

Check mark

Activate power transistor test operation from the indoor unit

Run this procedureArrow right

Fan Motor Connector Output Check

Check mark

Check the connection of connector

Check mark

Check the motor power supply voltage output (pins 4 - 7)

Check mark

Check the motor control voltage (pins 4 - 3)

Check mark

Check the rotation command voltage (pins 4 - 2)

Check mark

Check the rotation pulse (pins 4 - 1)

Check mark

Sign off on the fan motor connector output check

Run this procedureArrow right

Power Module Check

Check mark

Warning: Ensure the voltage between (+) and (-) of the power module is approximately 0 V before proceeding.

Check mark

Voltage between (+) and (-) of the power module is approximately 0 V?

Check mark

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Check mark

Compressor harness connector disconnected from the outdoor unit PCB?

Check mark

Measure resistance between the (+) or (-) terminal of the power module and the U, V, or W terminal of the compressor with a multimeter.

Check mark

Enter the resistance measurement

Check mark

Evaluate the measurement results

Check mark

Sign off on the power module check

Run this procedureArrow right
