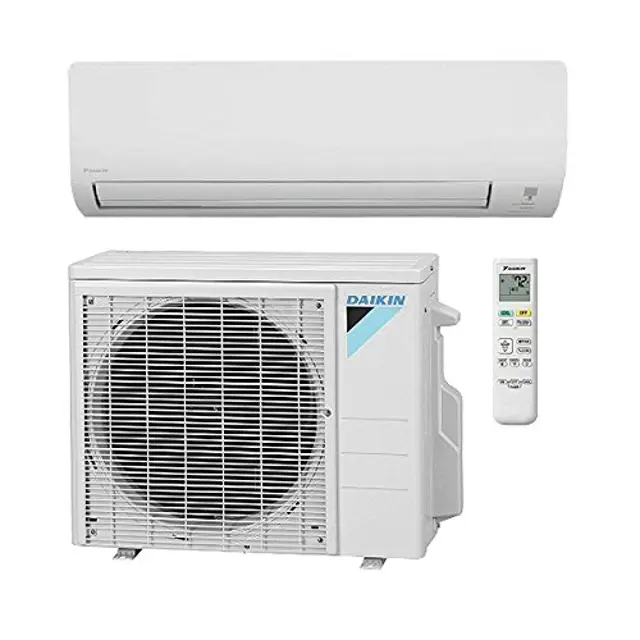

Daikin Air Conditioner RX24NMVJU

Need answers fast?
Explore the manual using AI.

Daikin Air Conditioner RX24NMVJU
Daikin Air Conditioner RX24NMVJU

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Daikin Air Conditioner RX24NMVJU

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Daikin Air Conditioner RX24NMVJU

Daikin Air Conditioner RX24NMVJU

Create an account to install this asset package.

Maintenance Plans for Daikin Air Conditioner Model RX24NMVJU

Integrate maintenance plans directly into your work orders in MaintainX.

3 Yearly Air-purifying Filter Replacement

Check mark

Warning: Dispose of old filters as non-flammable waste

Check mark

Old filter removed from the tabs

Check mark

Upload a photo of the old filter

Check mark

New filter prepared

Check mark

New filter properly set in the tabs

Check mark

Upload a photo of the new filter in the tabs

Check mark

Filters reattached

Check mark

Front panel closed slowly

Check mark

Note: Operation with dirty filters can result in poor cooling and may cause odor

Run this procedureArrow right

2 Weekly Air Filter Cleaning

Check mark

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

Check mark

CAUTION: Do not touch the aluminium fins of the indoor unit. If you touch those parts, this may cause an injury

Check mark

NOTE: For cleaning, do not use any of the following: • Water hotter than 104°F (40°C) • Volatile liquid such as benzene, petrol and thinner • Polishing compounds • Rough materials such as a scrubbing brush

Check mark

Did you open the front panel by holding the sides?

Check mark

Did you pull out the air filters by pushing the filter tab at the center of each air filter a little upwards, then pulling it down?

Check mark

Did you wash the air filters with water or clean them with a vacuum cleaner?

Check mark

It is recommended to clean the air filters every 2 weeks

Check mark

If the dust does not come off easily, did you wash the air filters with neutral detergent thinned with lukewarm water, then dry them up in the shade?

Check mark

Did you reattach the filters?

Run this procedureArrow right

6 Monthly Air-purifying Filter Cleaning

Check mark

Warning: Ensure the air purifier is turned off and unplugged before starting the procedure

Check mark

Open the front panel and pull out the air filters

Check mark

Take off the titanium apatite photocatalytic air-purifying filters from the tabs

Check mark

Choose the cleaning method for the filters

Check mark

After washing, shake off remaining water and let them dry in the shade

Check mark

Sign off on the filter cleaning

Run this procedureArrow right

Air Conditioner Cleaning

Check mark

Cleaning the front panel

Check mark

Is the front panel dirty?

Check mark

Describe the condition of the front panel

Check mark

Cleaning the indoor unit, outdoor unit and remote controller

Check mark

Are the indoor unit, outdoor unit and remote controller dirty?

Check mark

Describe the condition of the indoor unit, outdoor unit and remote controller

Check mark

Preparing for a long period of non-use

Check mark

Did you operate the FAN ONLY mode for several hours to dry out the inside?

Check mark

Did you turn off the circuit breaker for the room air conditioner after operation stops?

Run this procedureArrow right

Parts for Daikin Air Conditioner RX24NMVJU

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Air Direction Adjustment Grille

KPW063A4

Back Protection Wire Net

KKG063A42

Side Protection Wire Net

KKG063A43

Drain Plug

KKP937A4

Air Direction Adjustment Grille

KPW063A4

Back Protection Wire Net

KKG063A42

Side Protection Wire Net

KKG063A43

Drain Plug

KKP937A4

Air Direction Adjustment Grille

KPW063A4

Back Protection Wire Net

KKG063A42

Side Protection Wire Net

KKG063A43

Drain Plug

KKP937A4
