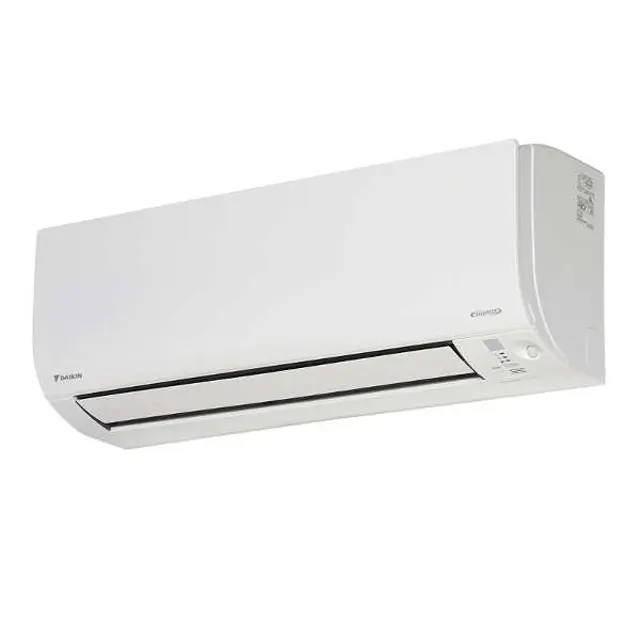

Daikin Air Conditioner FTXV20UVMA

Create an account to install this asset package.

Maintenance Plans for Daikin Air Conditioner Model FTXV20UVMA

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly Battery Replacement

Warning: Always replace both batteries together using the same type

Old batteries removed

Type of new batteries used

New batteries installed

Issues encountered during battery replacement

Sign off on the battery replacement

Run this procedure

2 Weekly Air Filter Cleaning

Warning: Ensure the air conditioner is turned off before starting the cleaning process

Open the front panel

Pull out the air filters

Wash the air filters with water or clean them with vacuum cleaner

If the dust does not come off easily, wash the air filters with neutral detergent thinned with lukewarm water?

Set the filters as they were

Close the front panel slowly

Sign off on the air filter cleaning

Run this procedure

Front Panel Cleaning

CAUTION: When removing or attaching the front panel, stand on a solid, stable base and take care not to fall. Support the panel securely with your hand to prevent it from falling.

Front panel dirty?

If front panel is dirty, proceed with the following steps.

Front panel opened successfully?

Front panel removed successfully?

Front panel cleaned successfully?

Front panel attached successfully?

Front panel closed successfully?

Sign off on the front panel cleaning

Run this procedure

6 Monthly Air-Purifying Filter Maintenance

Warning: This maintenance check requires trained personnel with PPE!

Open the front panel and pull out the air filters

Take off the titanium apatite photocatalytic air-purifying filters

Remove the filters from the tabs by remove 6 points of hook

Clean or replace the titanium apatite photocatalytic air-purifying filters

Vacuum dust, and soak in lukewarm water or water for about 10 to 15 minutes if very dirty

After washing, shake off remaining water and let them dry in the shade

Remove the filter from the filter frame and prepare a new one

When attaching the filter, check that the filter is properly set in the tabs

Run this procedure

Air Conditioner Cleaning

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

CAUTION: Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

Clean Indoor unit, Outdoor unit and Remote controller if bothered by dirt

Wipe them with soft cloth

For cleaning, do not use the materials as follows: Hot water above 40°C, Volatile liquid such as benzene, petrol and thinner, Polishing compound, Rough materials such as a scrubbing brush

Prior to a long period of non-use:

Operate the FAN mode for several hours on a fine day to dry out the inside

Press MODE and select “FAN”

Press ON/OFF and start the operation

Run this procedure
