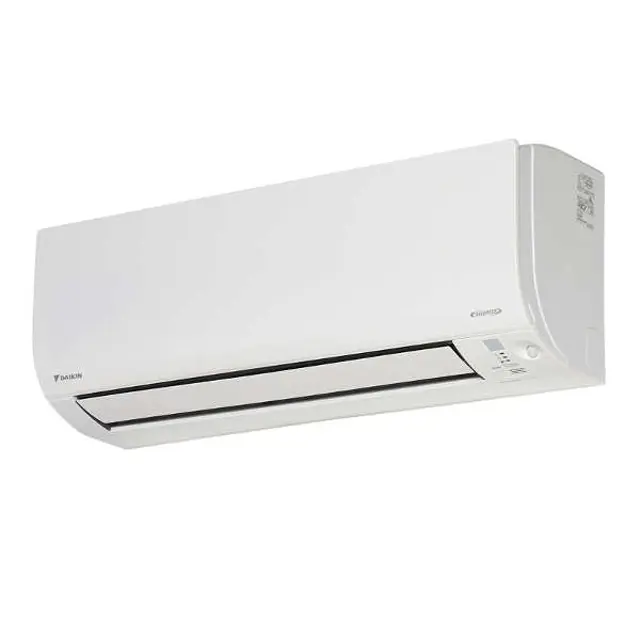

Daikin Air Conditioner FTXM60QVMA

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

CAUTION: Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

Is the remote controller clean?

Do not use hot water above 40°C, volatile liquid such as benzene, petrol and thinner, polishing compound, rough materials such as a scrubbing brush for cleaning.

Select the mode on the remote controller

CAUTION: When removing or attaching the front panel, stand on a solid, stable base and take care not to fall

CAUTION: When removing or attaching the front panel, support the panel securely with your hand to prevent it from falling

Open the front panel by holding the panel tabs on the 2 sides and opening it

Remove the front panel by sliding it to either the left or right and pulling it toward you

Clean the front panel by wiping it with a soft damp cloth

Use only neutral detergent for cleaning

If washed with water, wipe the panel with a dry soft cloth, and let it dry in the shade after washing

Attach the front panel by aligning the front panel shaft on the left and right of the front panel with the grooves, then pushing them all the way in

Close the front panel slowly by pressing the front panel at both sides and the centre

Warning: Ensure the air conditioner is turned off before starting the cleaning process

Wash the air filters with water or clean them with vacuum cleaner

If the dust does not come off easily, did you wash the air filters with neutral detergent thinned with lukewarm water?

Sign off on the air filter cleaning

Warning: Always replace both batteries together using the same type

Enter the date of battery replacement

Note: The batteries supplied with the remote controller are for initial operation. They may run out in less than 1 year

Sign off on the battery replacement

Warning: This maintenance check requires trained personnel with PPE!

Open the front panel and pull out the air filters

Take off the titanium apatite photocatalytic air-purifying filters

Remove the filters from the tabs by remove 6 points of hook

Clean or replace the titanium apatite photocatalytic air-purifying filters

Vacuum dust, and soak in lukewarm water or water for about 10 to 15 minutes if very dirty

After washing, shake off remaining water and let them dry in the shade

Remove the filter from the filter frame and prepare a new one

When attaching the filter, check that the filter is properly set in the tabs
