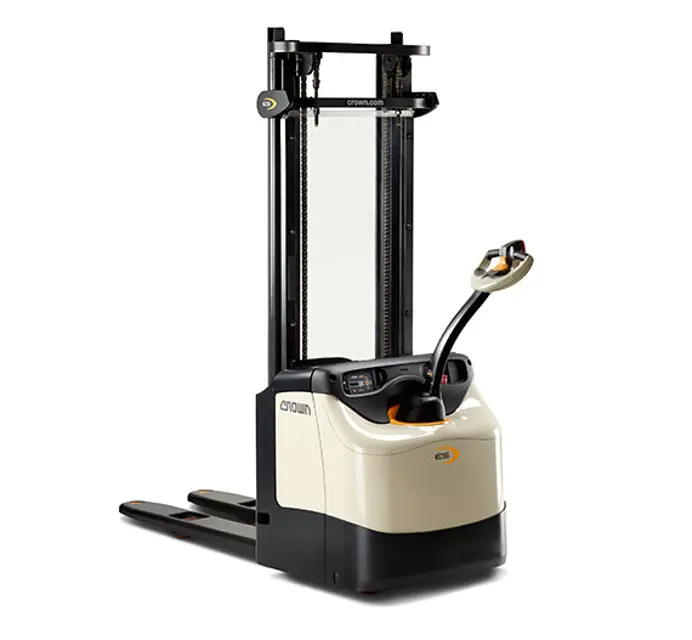

Crown Walkie Stacker ES 4000 3500 TL

Warning: Only trained and authorized personnel should perform this procedure

Access to an AC electrical outlet

Extension cord less than 7.5 meters (25 ft) long, with a wire size of 16 AWG or heavier

One end of the extension cord plugged into the charging socket in the battery compartment

Other end of the cord plugged into the AC outlet

Charging lights on the console checked

Before charging your truck batteries:

Test drive your truck in an uncongested area

Operate the truck slowly in both directions

Operate through the full speed range in both forward and reverse

Check braking distance in forward and reverse

Load size and floor conditions can affect these distances

Know the distance it takes to stop before you start working. If the braking distance is too long to stop safely, don't use the truck

If anything doesn't look, work or feel right, don't use the truck. Report the problem to your supervisor

CHECK YOUR TRUCK BEFORE STARTING WORK

You must make sure your truck is safe to use

Walk around your truck and check it over

Vent caps are in place, unless sealed, maintenance-free batteries have been selected

All wheels are in good condition

Both forks are secure and not bent, cracked or badly worn

- WHEN YOU INSTALL OR CHANGE AN INDUSTRIAL BATTERY:

• Turn the truck OFF and disconnect the battery

• Make certain you use the correct size and weight battery. Never operate a truck that has an underweight or undersized battery installed

• Never let anything metal touch the top of the cells

You could cause sparks or do damage to the battery

Use an insulator (such as plywood) when necessary

• Use an approved spreader bar to place a battery in, or remove it from, the battery compartment. Make sure you adjust the spreader bar hooks to fit the battery

• Connect the new battery. Turn the truck ON and check truck operation
