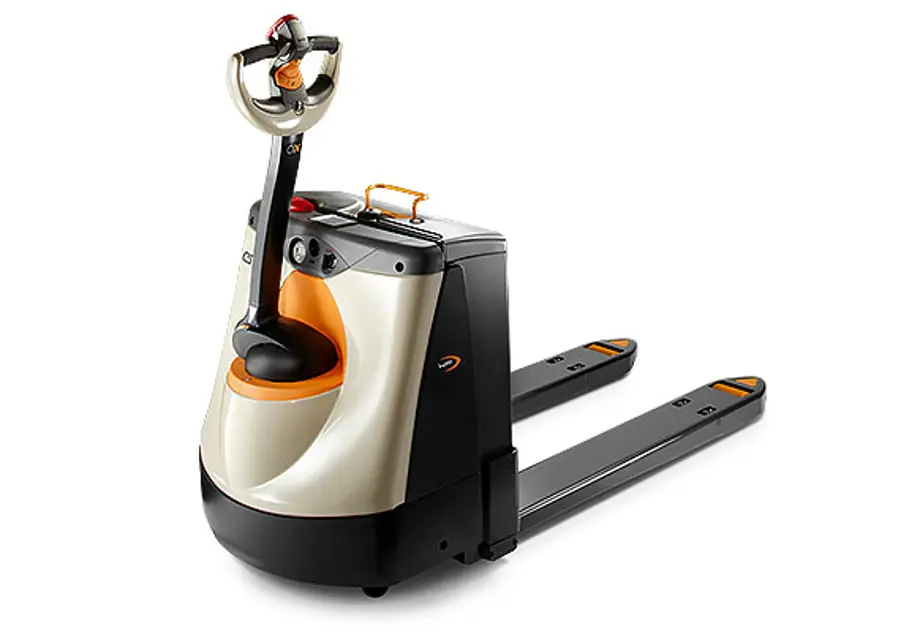

Crown Walkie Pallet Truck Wp3020

Warning: Only perform this procedure in an authorized area and avoid freezing temperatures.

Is the battery still connected?

Is the extension cord plugged into the AC outlet?

Have you read the instructions for the charger and power source?

Enter the voltage of the charger

Enter the amperage of the charger

Is the charger suitable for the power source?

Read the instructions for the charger and power source

Charger has the correct voltage and amperage for the power source

Charging a power source in an authorized area

Followed the directions on the charger provided

Test truck in an uncongested area

Operate the truck slowly in both directions

Operate through the full speed range in both forward and reverse

Is the braking distance acceptable?

If the braking distance is too long for you, don't use your truck

Warning: Check your truck before starting work. You must make sure your truck is safe to use.

Water level in serviceable batteries is appropriate

Battery cables and connectors are not damaged or corroded

All wheels are in good condition

Both forks are secure, straight and not cracked or badly worn

Load backrest is in place and secure

- Charge a thin plate pure Lead Acid Battery (TPPL)

1. When the energy level is low, an alarm will sound

2. Charge the battery as soon as possible

3. Opportunity charge during breaks or whenever the truck is not being used

Your company should provide an area that is safe to work on power sources. Use that area for all power source work and charging

• Do not charge or refuel a power source unless you are trained and authorized

• Do not remove or install a power source unless you are trained and authorized

- Charge a Flooded Lead Acid Battery (p.32)
