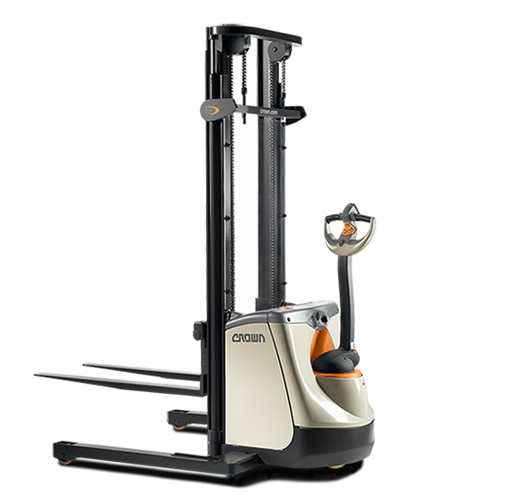

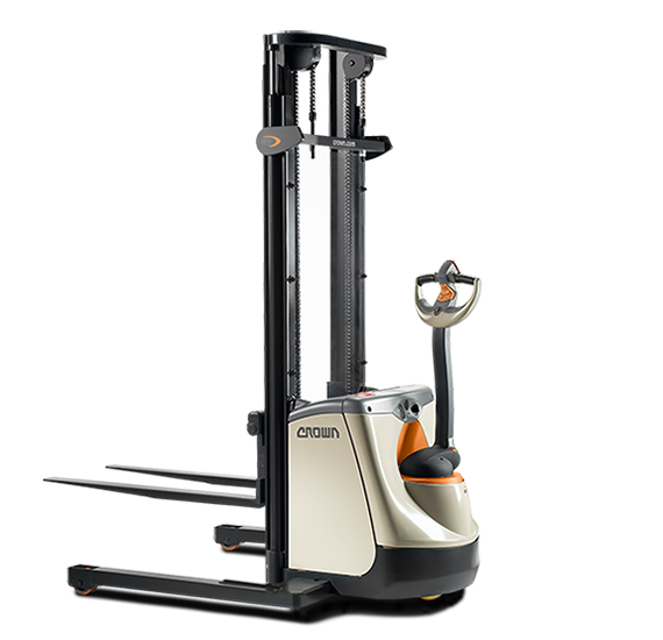

Crown Straddle Stacker STC3000-00

Warning: Only trained personnel should perform this procedure

Truck turned OFF and battery disconnected

Correct size and weight battery used

Nothing metal touching the top of the cells

Approved spreader bar used for battery placement

Spreader bar hooks adjusted to fit the battery

Truck turned ON and operation checked

Warning: Batteries can be dangerous. Only trained and authorized personnel should perform these checks.

Check if the truck has either a single industrial battery or a battery pack containing either two or four automotive style batteries

Check all batteries daily unless sealed, maintenance-free batteries have been selected

Check if you have access to an AC electrical outlet for charging

Check if the extension cord used is less than 7.5 meters (25 ft) long, with a wire size of 16 AWG or heavier

Check if the charging lights on the console are working

A steady yellow light means there is power to the charger. If the light does not come on, or goes out, make sure the AC outlet is working and the extension cord is OK

CHECK YOUR TRUCK BEFORE STARTING WORK

All wheels are in good condition

Both forks are secure and not bent, cracked or badly worn

Load backrest is in place and secure

No signs of hydraulic leaks under the truck

Test drive in an uncongested area

Try all the hydraulic functions

Operate the truck slowly in both directions

Operate through the full speed range in both forward and reverse

Check braking distance in forward and reverse
