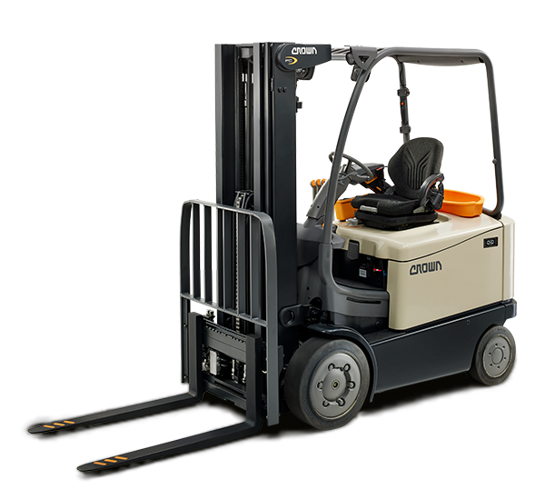

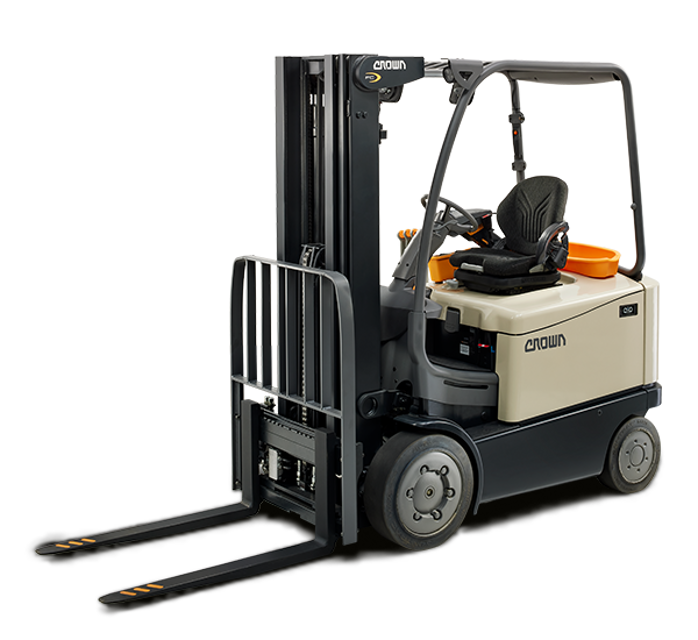

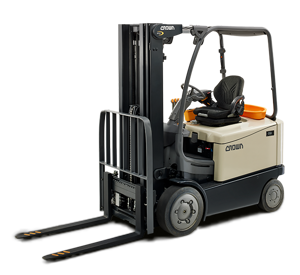

Crown Counterbalance Truck FC 5745-50

BEFORE CHARGING POWER SOURCES: Read the instructions for the charger and power source. Make sure that the charger has the correct voltage and amperage for the power source. Only charge a power source in an authorized area.

AVOID DAMAGING THE TRUCK AND BATTERY CHARGER: Make sure that the battery charger is plugged into the battery connector, not the truck connector.

AVOID DAMAGING THE BATTERY: Batteries that are not properly maintained will fail prematurely. Always follow the battery manufacturer’s instructions.

Unplug the power source connector from the truck

Follow the charging instructions from the power source manufacturer

When charging is complete, unplug the charger and plug the power source connector into the truck

Sign off on the battery maintenance

Test drive in an uncongested area

Adjust operator seat and steering wheel

Check steering ease and smoothness

Drive slowly in both directions

Drive through full speed range in forward and reverse

Check braking and plugging distances in forward and reverse

Is the braking distance acceptable?

Battery retainer is properly installed

All wheels are in good condition

Both forks are secure and not bent, cracked or badly worn

Lift chains and anchors for damage and corrosion

Lift chains are well lubricated

The load backrest is in place and secure, when required

No signs of leaks under the truck

Gas struts are working properly and holding the seat deck securely in the open position

For flooded lead acid batteries, battery water level is checked

Warning: Don't use an open flame to check the battery. Be sure vent caps are in place

Battery cables and connectors are inspected for damage or corrosion

Sign off on the daily battery check

Charging a V-Force Lithium-Ion Battery

Plug the charger into the battery charge port

Follow the charging instructions for the V-Force lithium-ion battery

Opportunity charge during breaks or whenever the truck is not being used

When opportunity charging is complete or the battery is fully charged, unplug the charger from the battery charge port

Read the instructions for the charger and power source

Make sure that the charger has the correct voltage and amperage for the power source
