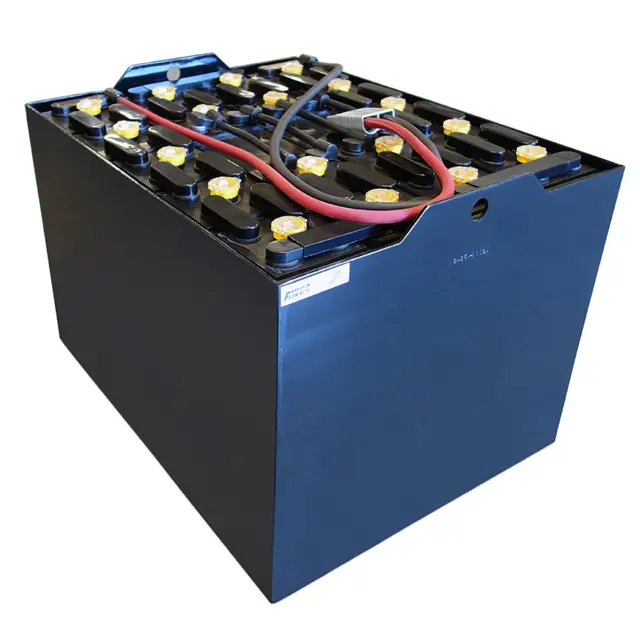

Crown Battery 18-D85-21

- To prevent corrosion and the resultant problems, batteries must be cleaned and dries routinely

Sometimes minor spills or overflows of electrolyte occur due to overfilling. Instead of giving the battery a general cleaning at this time, the moisture can be removed with rags or paper towels. (This should be immediately disposed of.)

The frequency of a general cleaning depends upon two factors:

1. How quickly dust, dirt, oil, and other foreign matter accumulates on the top of the battery, and 2. How quick the electrolyte spillage accumulates

When the top of a battery is "dirty" or looks damp, it is ready for a general cleaning. It could be as often as every two weeks or as infrequent as every six months, depending on the battery's environment and the care it receives. The average battery needs general cleaning every three months

To give a battery a general cleaning, use Powerhouse Cleaner's 3 Step Process (Corrosion Remover, Battery Cleaner, Rinse)

Powerhouse's Corrosion Remover was developed specifically for the removal of heavy corrosion and acid neutralization. For use, spray onto the corroded areas (will turn a rust looking color) and let sit for at least 10 minutes

Powerhouse's Battery Cleaner is a mixture of 2 parts cleaning detergent to 1 part acid neutralizer. Battery Cleaner is OSHA compliant and environmentally safe. For use, spray across the entire battery and let sit for at least 10 minutes

After the Corrosion Remover and Battery Cleaner have both sat for at least 10 minutes the battery can now be rinsed. The corrosion and acid should be neutralized and can be washed down the drain (note if lead pieces from the top of the battery are in the water they should be disposed of properly.)

- A capacity test enables you to determine the capacity a battery actually delivers as compared to its rated capacity. This test can help determine if a battery should be repaired or replaced. When a battery delivers less than 80% of its rated capacity, the remaining capacity will decrease with each additional cycle

- It should be replaced before its cells fail and cause low-voltage operation of the vehicle, which can cause damage to the trucks electrical system

- A capacity test is performed by discharging a fully charged battery at a fixed rate (see chart on page 30) while monitoring specific test conditions, methods and procedures

- The six-hour rated discharge time is based on an electrolyte temperature of 77°F (25°C). Any deviation to that temperature, a correction to the six-hour rated time must be made

PROCEDURES FOR CAPACITY DISCHARGING:

1) Battery must be fully charged.

2) Specific gravities must be at manufacturers specifications, otherwise they must be adjusted accordingly.

3) Battery should be allowed to cool down prior to testing. Ideally, the temperature should be 75°F to 85°F. Otherwise the voltages will be affected by the temperature and the capacity must be temperature corrected.

4) Battery should be discharged within 24 hours of completion of charging and acid adjustment.

Warning: This inspection requires trained personnel with PPE!

Is the battery still in the vehicle?

If the battery is still in the vehicle, turn off the power switch and unplug the battery from the vehicle

Allow the battery to remain on open circuit (do not charge or discharge) for 30 minutes or longer

Fill in the Crown Battery Inspection Report. Include battery type, serial number, etc.

Read and record the specific gravity for all cells of the battery

Read and record the open circuit voltage for all cells of the battery

Read and record the pilot cell temperature

Record the temperature-corrected specific gravity readings. Use a temperature correction thermometer. Use the pilot cell temperature for the temperature correction of all the cells.

- Lead Acid Motive Power Batteries can become unbalanced or sulfated if they are not recharged or equalize charged on a regular basis

Likewise over-discharging or unbalanced discharge can cause low uneven cell voltages. The treatment for restoring the battery to its full potential involves charging and discharging the battery in a very tightly controlled manor

This is a last resort remedy in order to salvage a battery that's been allowed to get into this condition. This may or may not be successful, as sulfate is extremely hard to remove from the cell plates and if let in this condition, may not be reversible

A. Charge the battery as normal to a fully charged condition.

B. Record all individual cell voltages and specific gravities. These readings will be used later to measure how successtul the treatment was.

C. Starting with a cool (less than 80°F) fully charged battery, charge the battery at 2.5 amps per 100 amps of battery capacity. A 24-85FC-21 has a capacity of 850 A.H. Therefore the charge rate would be 21 amps. Charge the battery for at least 24 hours. Stop the charge, if the battery temperature goes to 120°F or higher.

A. Let the battery cool back down to about 80°F

Check uniformity of battery cells

Enter the state of charge of the cells

Check if cells require equalizing charge

Select the battery operation type

Note: Unnecessary equalizing charges can result in significant loss of battery life caused by overcharge.

Sign off on the battery maintenance
