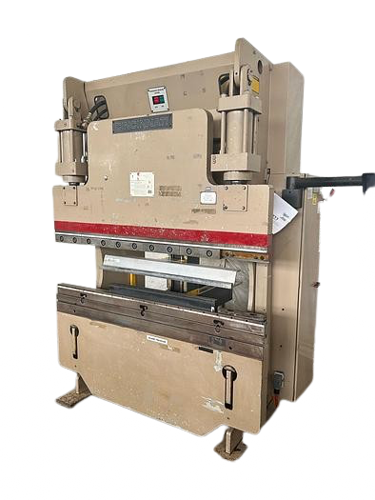

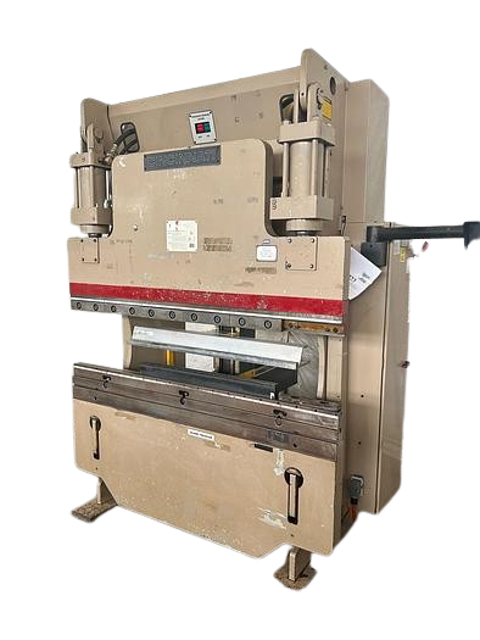

The Cincinnati Hydraulic Press Brake 60 CBII is a robust industrial asset designed for precision metal forming. Known for its reliability and efficiency, this model is ideal for various manufacturing applications, ensuring high-quality bending and shaping of materials. Regular maintenance is essential to maximize its performance and longevity.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Cincinnati Hydraulic Press Brake 60 CBII

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Cincinnati Hydraulic Press Brake 60 CBII

Create an account to install this asset package.

Maintenance Plans for Cincinnati Hydraulic Press Brake Model 60 CBII

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly Hydraulic Press Brake Maintenance

Drain, clean and refill hydraulic reservoir

Replace pump suction filter

Clean reservoir oil filler-breather

Check hydraulic pressures

The oil should be drained and replaced

Sign off on the hydraulic press brake maintenance

Run this procedure

Servo Valve Replacement

Ram blocked at both ends

All power to machine turned OFF and disconnect switch on main electrical enclosure LOCKED

Cover and old servo valve removed from servo valve housing

Feeler gage measurement between servo valve anchor collar and servo valve housing

Locknuts installed on servo valve stem located at bottom of servo valve

New servo valve bolted in place

Position of valve spool adjusted with adjusting nuts to obtain .188\ +.005 dimension"

Parallelism of bed and ram checked and adjusted if necessary

Servo valve cover replaced

Run this procedure

Piston Rod Seal Replacement

Run ram to the maximum down position and block both ends of the ram

Turn OFF machine and LOCK the electrical disconnect

Remove ram pin cover plate on front of ram using extractor bar

Swing cylinder out from ram and insert wooden block between cylinder and housing so piston rod is clear of ram

Remove 6 or 8 bolts from seal retainer and insert 3 or 4 3/8\ x 1\" (or longer) set screws into tapped holes in retainer. Tighten set screws to back-off retainer"

Support retainer to keep from falling free and remove seal retainer

Remove seal from groove in bore of seal retainer. The seal has an energizing \o\" ring to pre-load the seal"

Replace with a new seal. Also inspect non-metallic bearing strip in bore of seal retainer and \o\" ring seal in top face of retainer. Replace if necessary"

Using auto body slide hammer-puller, remove the piston rod seal. This seal has no energizing. Be careful not to damage finished surface of piston rod or lower head seat

Run this procedure

Oil Filter Strainer Cleaning

Warning: Ensure the machine is turned off and cooled down before starting the procedure

Remove six screws and lift out strainer unit

Backflush strainer with solvent

Allow to dry before replacing

Sign off on the cleaning procedure

Run this procedure

1 Monthly Hydraulic Press Brake Maintenance

Lubricate cylinder clevis pin(s)

Clean and flush ram guides with oil

Check for water in reservoir(s)
