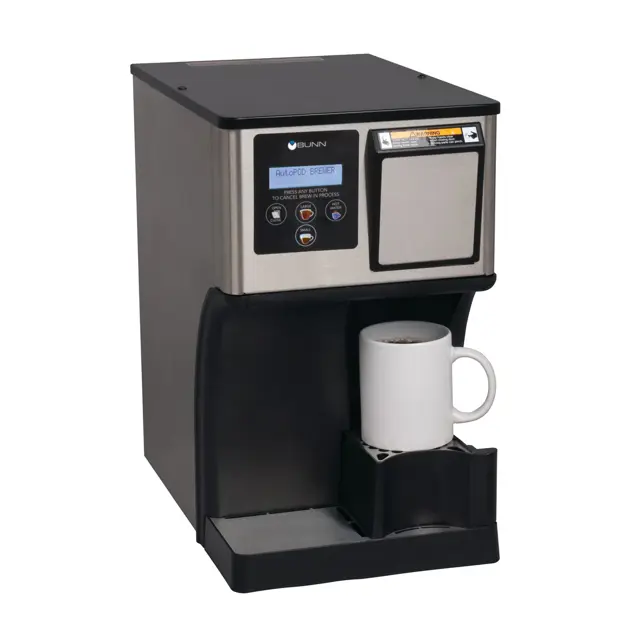

Bunn Brewer MY CAFE AP
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Bunn Brewer MY CAFE AP
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Bunn Brewer MY CAFE AP
Create an account to install this asset package.
Maintenance Plans for Bunn Brewer Model MY CAFE AP
Integrate maintenance plans directly into your work orders in MaintainX.
Brewer Sprayhead Cleaning
Warning: Disconnect brewer from power source and allow to cool before starting the procedure
Open the pod door with the 'OPEN/CLOSE' switch
Remove 2 screws and top cover
Slip one hand through pod door opening. With other hand turn thumbscrew counterclockwise. Remove sprayhead assembly through front
Remove seal from sprayhead
Check and clean the sprayhead. The sprayhead holes must always remain open. Clean all the holes in the plastic sprayhead to remove any mineral deposits. Wash and rinse in sink
When reassembling sprayhead, be sure to have seal installed with ridge facing up
Upload a photo of the cleaned and assembled sprayhead
Sign off on the brewer sprayhead cleaning
Brewer Tank Maintenance
Power and water supply to brewer disconnected
Brewer allowed to cool before proceeding
Top and rear covers removed
Brewer placed next to a sink
Drain hose directed into sink
Clamp and plug removed
Water syphoned out of tank
Plug and clamp replaced
Covers replaced and screws tightened
Brewer Bin/Driptray Cleaning
Pull the driptray assembly straight towards you
Pull the bin straight out and empty as required
Seperate the parts and wash with mild, nonabrasive, liquid detergent
Assembly is in reverse order
Cleaning completed successfully
Sign off on the cleaning
Parts for Bunn Brewer MY CAFE AP
Access the parts list for your equipment in MaintainX.
Water Filter
39000.0001
Water Filter
39000.0004
Merchandiser
39501.0001
Rack Assy
39502.0001
System
56000.0001
Water Filter
39000.0001
Water Filter
39000.0004
Merchandiser
39501.0001
Rack Assy
39502.0001
System
56000.0001
Water Filter
39000.0001
Water Filter
39000.0004
Merchandiser
39501.0001
Rack Assy
39502.0001
System
56000.0001
