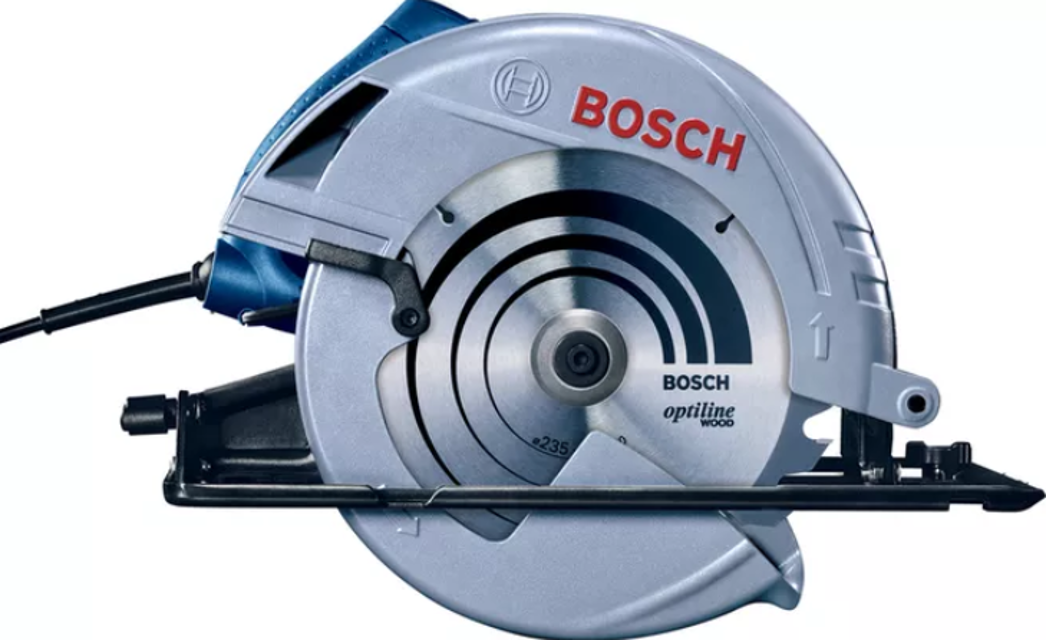

Bosch Circular hand saw GKS 235 Turbo

Warning: Before any work on the machine itself, pull the mains plug.

Machine and ventilation slots clean

If the replacement of the supply cord is necessary, this has to be done by Bosch or an authorized Bosch service agent in order to avoid a safety hazard.

Retracting blade guard able to move freely and retract automatically

Always keep the area around the retracting blade guard clean. Remove dust and chips by blowing out with compressed air or with a brush.

Saw blades not coated and protected against corrosion with a thin coat of acid-free oil

Before use, the oil must be removed again, otherwise the wood will become soiled.

Resin and glue residue on the saw blade removed

Clean the saw blade immediately after use.

Warning: Before any work on the machine itself, pull the mains plug.

Warning: When mounting the saw blade, wear protective gloves.

Warning: Danger of injury when touching the saw blade.

Warning: Only use saw blades that correspond with the characteristic data given in the operating instructions.

Warning: Do not under any circumstances use grinding discs as the cutting tool.

Selected a recommended saw blade?

Warning: For changing the cutting tool, it is best to place the machine on the face side of the motor housing.

Pressed the spindle lock button and kept it pressed?

Unscrewed the clamping bolt turning in rotation direction with the Hex key?
