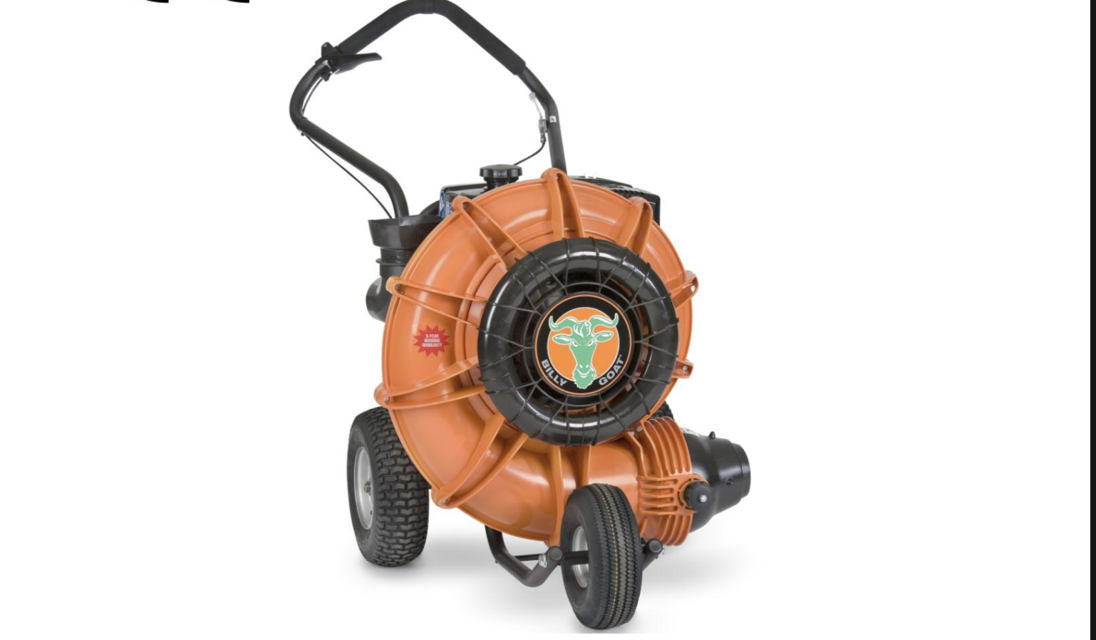

Billy Goat Industries Force Blower Self-Propelled F902SPH

BELT TENSION ADJUSTMENT; DO NOT ADJUST WHILE THE MACHINE IS RUNNING!

Loosen the nut (item 92) on the Idler pulley (item 93) but do not remove it

Slide the pulley left or right to adjust tension

Ensure proper distance to apply tension to the belt

Wait for engine to cool and disconnect spark plug

Place a block of wood or another object under the axle to support and steady the unit

Chain Guard and Bearing Removal

Remove the two screws holding the chain guard and then remove the chain guard

Loosen the two nuts holding the bearing

Remove the retaining ring holding the wheel on and slide the wheel off

Replace the chain by removing the old chain from the sprockets

Loosen the two nuts on the end of the clutch cable (item 111) going into the transmission

Adjust the position of the clutch cable on the threads to change tension on the clutch lever (item 113)

Note any adjustments made to the clutch cable position

Tighten the nuts securely once the desired position is achieved

Start the machine and check the operation of the clutch cable

Is the drive cable engaging properly?

If not engaging properly, shut the machine off and reposition the nuts on the cable to tighten the drive cable

Follow the Impeller removal steps (2-5 on page 12)

Remove the four bolts holding the back plate to the back housing

Loosen the nut on the idler pulley and slide it to the right to relieve tension on the belt
