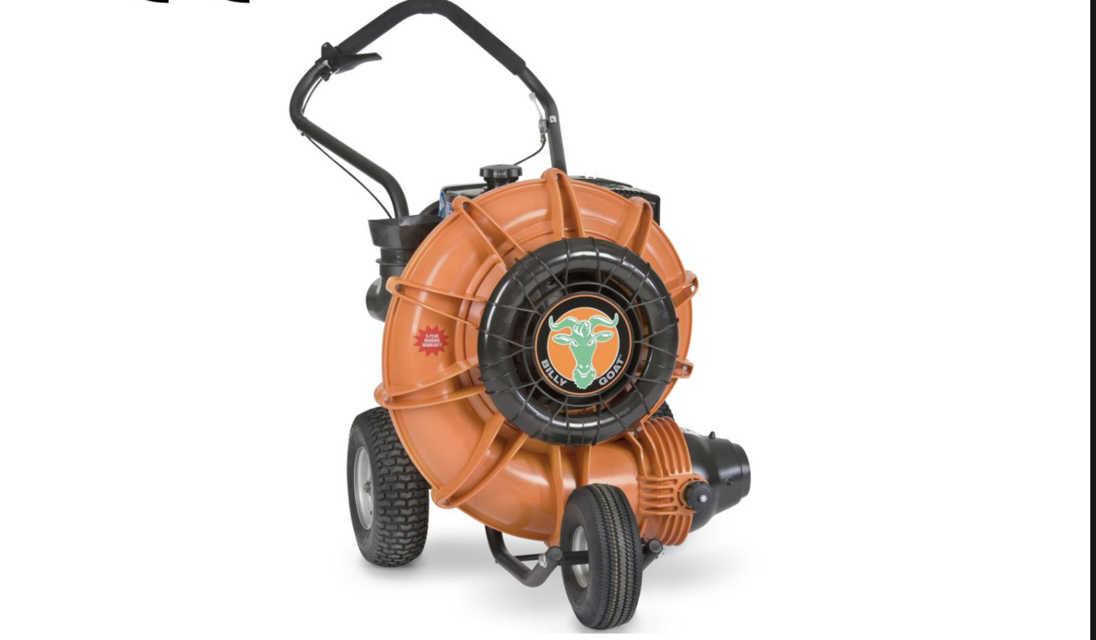

Billy Goat Industries Force Blower Self-Propelled F1802SPV

Follow the Impeller removal steps (2-5 on page 12)

Remove the four bolts holding the back plate to the back housing

Loosen the nut on the idler pulley and slide it to the right to relieve tension on the belt

Place a block of wood or another object under the axle to support and steady the unit

Remove the two screws holding the chain guard

Loosen the two nuts holding the bearing

Loosen the two nuts on the end of the clutch cable (item 111) going into the transmission

Adjust the position on the threads to change the tension on the clutch lever (item 113)

Is the clutch cable positioned optimally to remove any slack when disengaged?

Tighten the nuts securely once the desired position is in place

Start the machine and check the operation of the clutch cable

Is the drive cable engaging properly?

If not engaging properly, shut the machine off and reposition the nuts on the cable to tighten the drive cable

BELT TENSION ADJUSTMENT; DO NOT ADJUST WHILE THE MACHINE IS RUNNING!

Loosen the nut on the Idler pulley (item 92) but do not remove it

Slide the pulley (item 93) left or right to adjust tension

Ensure the pulley is at the proper distance to apply tension to the belt

Tighten the nut on the Idler pulley
