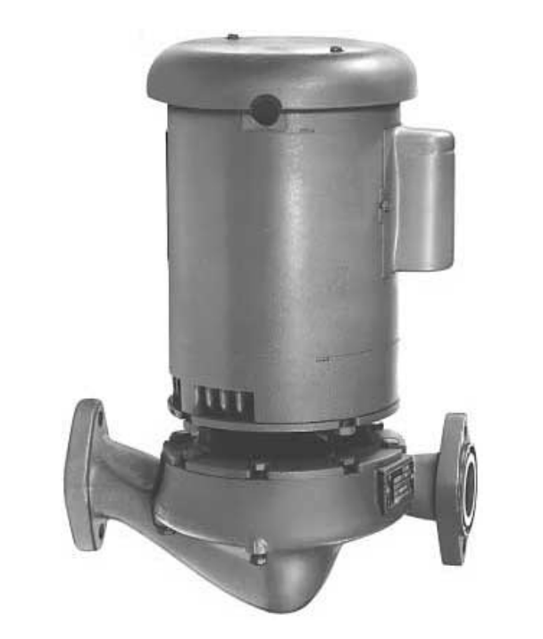

Bell & Gossett Pump 90-15T

Store the pump in a covered, dry location.

Keep the unit free of heat, dirt, and vibration.

Turn the shaft by hand several times.

Repeat shaft rotation every three months while in storage.

Check motor size and lubrication requirements

Use lubricant suited for motor bearings

Record manufacturer's nameplate instructions for lubrication

Is the lubricant available from a local sales and service representative?

Flush and clear the piping system of dirt or debris before startup.

Bring variable-speed drivers up to rated speed as quickly as possible.

If the pumped fluid will exceed 200°F (93°C), warm up the pump by circulating a small amount of fluid until the casing temperature is within about 100°F (38°C) of the fluid temperature.

Confirm the area is clear and briefly jog the driver to verify the direction of rotation matches the arrow on the pump body.

Lock out power to the driver again once rotation is confirmed.

Disconnect and lock out the electrical supply

Remove the conduit box cover and disconnect the conduit and wiring

Close the suction and discharge isolation valves

Is the system drained if no isolation valves are installed?

Open the drain valve and wait until liquid stops flowing

Leave the drain valve open until reassembly is complete

Ensure proper operation precautions are followed
