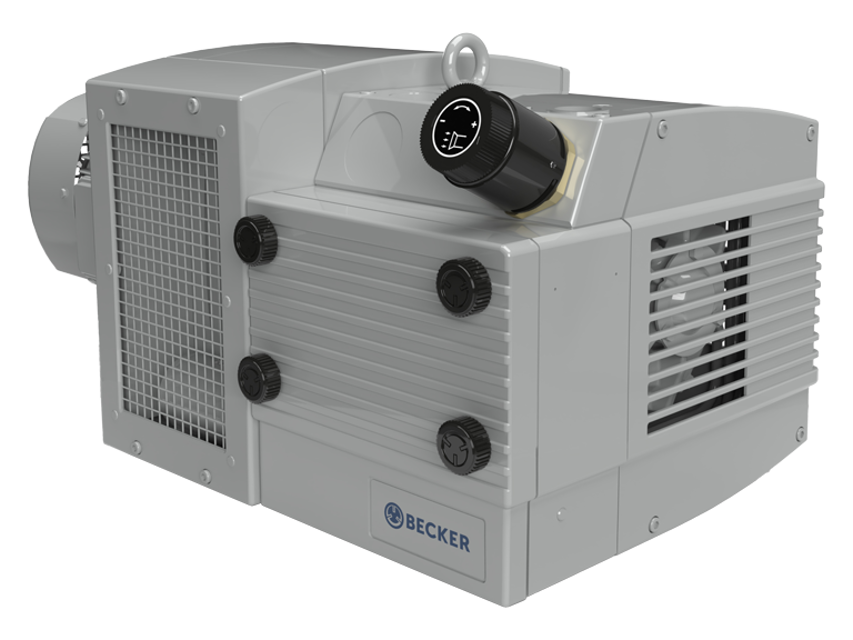

Becker Pumps Rotary Vane Vacuum Pump KVT 3.80

Enter the pump's run time in hours

Grease bearing at 2,000 hours of run time on the pump

Enter the number of times grease was pushed into each fitting

NOTE! Use only special Becker Amblygon grease to maintain warranty protection

Sign off on the bearing lubrication

Enter the pump's run time in hours

Warning: Only proceed if pump has run for 3000 hours or more

Warning: Replace vanes when the minimum vane height is reached

Housing and rotor slot blown out

Vanes replaced with sloping side away from direction of rotation

Warning: Wear dust masks and eye protection/goggles that protect against dust, debris, powders and airborne particles.

Wipe away any excess grease from the rotor shaft

Fully insert pins before tightening end shield bolts

Blow out cooling fins and underneath plastic shrouds removing any debris

Sign off on the maintenance procedure

NOTE! Filter/elements should be checked between 40-200 hours

The elements have been blown with compressed air from the inside out

Blast air can be felt coming through the filter/element

Does the element need to be replaced due to dirt or clogging?

NOTE! Use only Becker Genuine filters to maintain warranty protection
