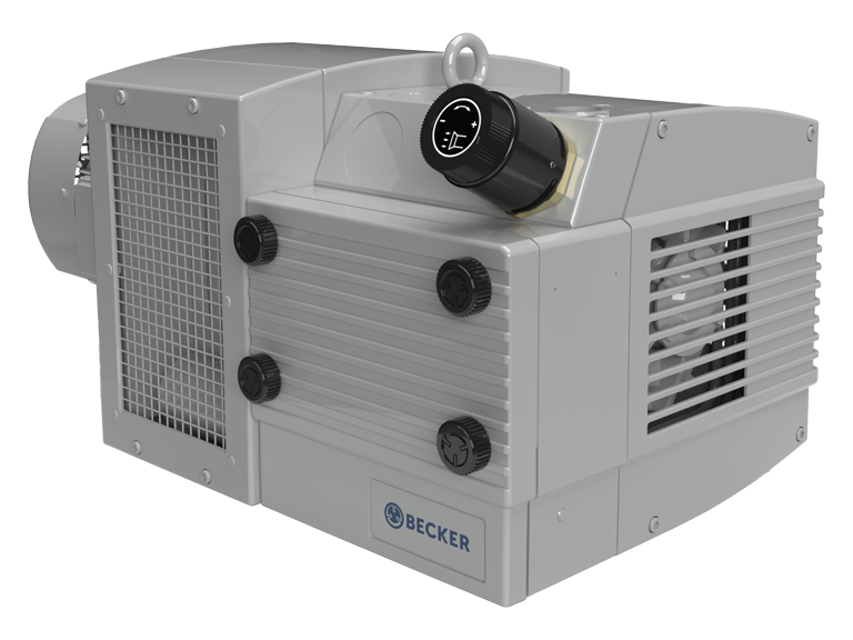

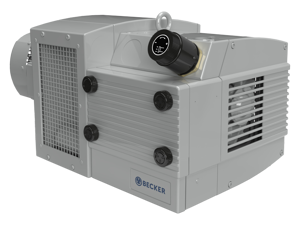

Becker Pumps Rotary Vane Vacuum Pump KVT 3.140

Warning: Wear dust masks and eye protection/goggles that protect against dust, debris, powders and airborne particles.

Wipe away any excess grease from the rotor shaft

Fully insert pins before tightening end shield bolts

Blow out cooling fins and underneath plastic shrouds removing any debris

Sign off on the maintenance procedure

Locate grease gun. Depending on pump type, the grease will need to be hard packed (N) or pushed into fittings found behind the end chamber cover. (O.)

Enter the number of pushes into each fitting

NOTE! Use only special Becker Amblygon grease to maintain warranty protection. (P.)

Sign off on the bearing lubrication

NOTE! Filter/elements should be checked between 40-200 hours

The elements have been blown with compressed air from the inside out

Blast air can be felt coming through the filter/element

Does the element need to be replaced due to dirt or clogging?

NOTE! Use only Becker Genuine filters to maintain warranty protection

Upload a photo of the new filter

Enter the pump's run time in hours

Vanes checked for wear after 3000 hours of run time?

To open vane location area, remove plastic end cover, unscrew bolts and feed bolts back into threaded ports to remove end shield

Vanes replaced when the A min (Vane Height Minimum) is reached?

Before replacement blow out the housing and the rotor slot

Vanes changed correctly? (the sloping side of the vane is away from the direction of rotation)

Caution: If vanes are allowed to wear past the minimum height, the vanes may break. Replace vanes before reaching minimum height. Use only Becker Genuine vanes to maintain warranty protection.
