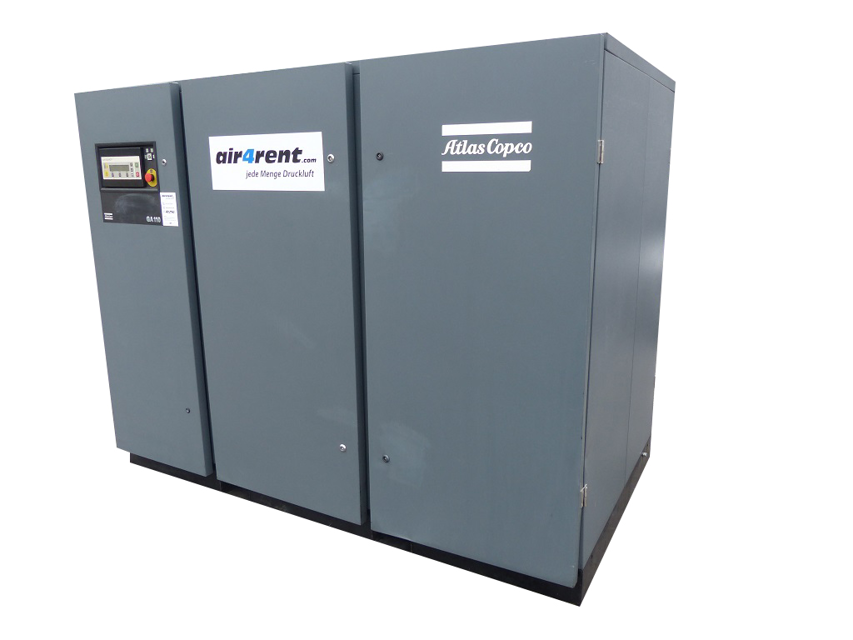

Atlas Copco Oil Injected Rotary Screw Compressor GA132

Reset the message and service timer

Sign off on the air filter element replacement

Stop the compressor, close the air outlet valve and switch off the voltage

Wait a few minutes and depressurise by unscrewing plug only one turn to permit any pressure in the system to escape

Loosen the vent plugs on top of the oil coolers

Drain the oil by removing the drain plugs

Tighten the plugs after draining

Fill the air receiver with oil until the level reaches the filler opening

Warning: This procedure requires trained personnel with PPE!

Is the compressor operating at ambient temperatures between 0 ̊C (32 ̊F) and 46 ̊C (115 ̊F)?

Stop the compressor, close the air outlet valve and switch off the voltage.

Depressurise by unscrewing plug only one turn to permit any pressure in the system to escape.

Loosen the vent plugs on top of the oil coolers.

Drain the oil by removing the drain plugs.

Tighten the plugs after draining.

Warning: This service requires trained personnel with PPE!

Check the oil level in the oil collectors

Is it necessary to empty the collectors?

If necessary, empty the collectors and take the oil to the local collection service

Keep the covers of the vessels in place to prevent possible evaporation

Drain condensate from the air receiver

Sign off on the compressor service

Check that condensate is discharged during loading

Check oil level. Before starting, the level should be in the middle of the sight-glass

Sign off on the compressor check
