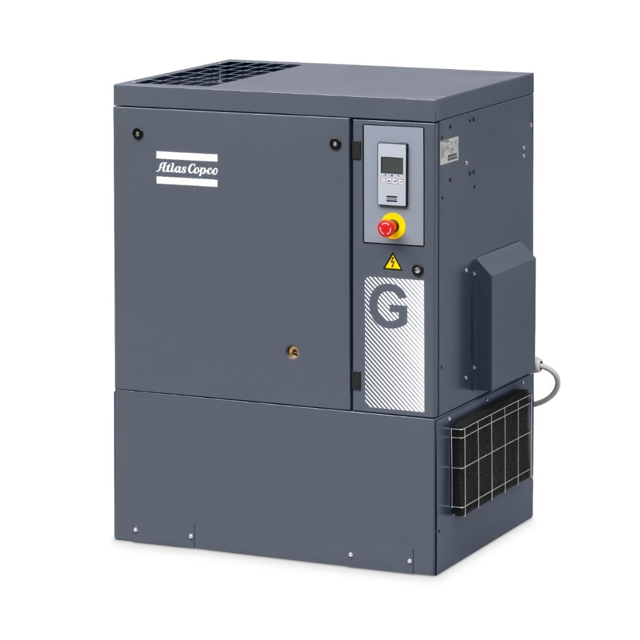

Atlas Copco Oil-Injected Rotary Screw Compressor G7FF-145 575/60 TM MEAH dol

Need answers fast?
Explore the manual using AI.

Atlas Copco Oil-Injected Rotary Screw Compressor G7FF-145 575/60 TM MEAH dol
Atlas Copco Oil-Injected Rotary Screw Compressor G7FF-145 575/60 TM MEAH dol

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Atlas Copco Oil-Injected Rotary Screw Compressor G7FF-145 575/60 TM MEAH dol

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Atlas Copco Oil-Injected Rotary Screw Compressor G7FF-145 575/60 TM MEAH dol

Atlas Copco Oil-Injected Rotary Screw Compressor G7FF-145 575/60 TM MEAH dol

Create an account to install this asset package.

Maintenance Plans for Atlas Copco Oil-Injected Rotary Screw Compressor Model G7FF-145 575/60 TM MEAH dol

Integrate maintenance plans directly into your work orders in MaintainX.

1 Daily Oil-injected Rotary Screw Compressor Inspection

Check mark

Check the oil level

Check mark

Drain the condensate from the air receiver after stopping

Check mark

Use manual drain valve for condensate draining

Run this procedureArrow right

4000 Hourly PDX/DDX Filter Change

Check mark

Warning: Ensure the compressor is stopped and the air outlet valve is closed.

Check mark

Voltage switched off?

Check mark

Depressurised by unscrewing oil filler plug one turn?

Check mark

Depressurised the filter by opening its drain valve (for floor-mounted units)?

Check mark

Depressurised the air receiver by opening condensate drain valve (if compressor is fitted onto an air receiver)?

Check mark

Filter bowl unscrewed?

Check mark

Warning: A whistling noise will warn you if the bowl is not fully depressurised. If this occurs, the bowl should be screwed back and the venting should be repeated.

Check mark

Filter element removed and discarded?

Check mark

Bowl cleaned and O-ring replaced?

Run this procedureArrow right

1000 Hourly Oil Cooler Cleaning

Check mark

Warning: Never use a wire brush or metal objects for cleaning

Check mark

Oil cooler clean and free of dirt

Check mark

Upload a photo of the cleaned oil cooler

Check mark

Sign off on the oil cooler cleaning

Run this procedureArrow right

1000 Hourly Belt Tension Check

Check mark

Warning: Ensure the compressor is stopped and the voltage is switched off before proceeding

Check mark

Air outlet valve closed

Check mark

Voltage switched off

Check mark

Front door removed

Check mark

Internal panel removed

Check mark

Force of the unit

Check mark

Deflection of the unit

Check mark

Total running hours of the belt

Check mark

Values to be measured are indicated with a sticker on the frame

Run this procedureArrow right

Oil-injected Rotary Screw Compressor Air Cooler Cleaning

Check mark

Stop the compressor

Check mark

Close the air outlet valve

Check mark

Switch off the voltage

Check mark

Remove any dirt from the air cooler (Ca)

Check mark

Avoid using a wire brush or metal objects

Check mark

Clean using an air jet

Check mark

Sign off on the air cooler cleaning

Run this procedureArrow right
