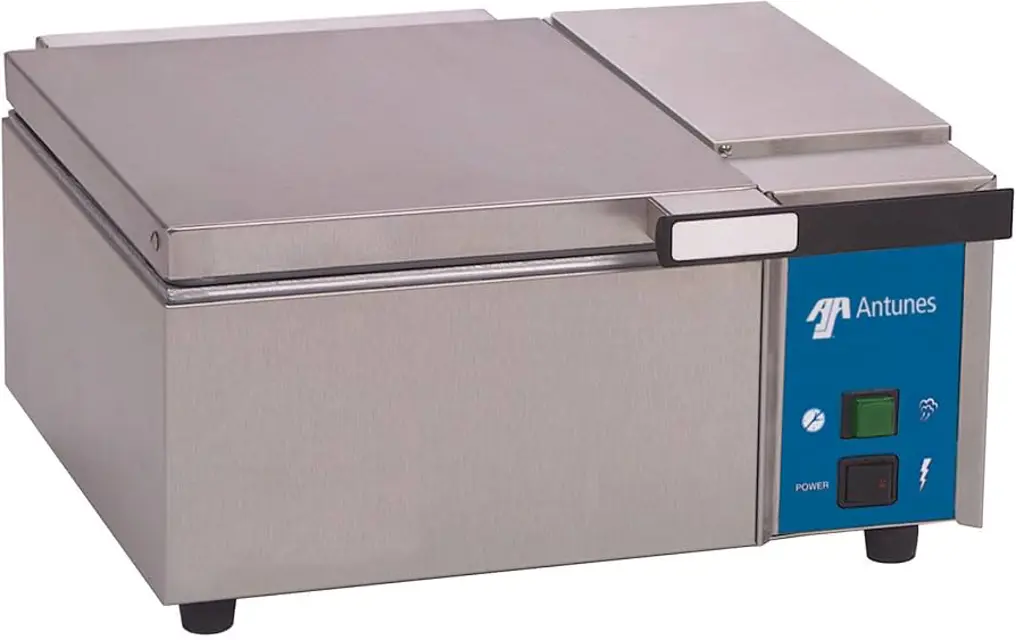

Antunes Deluxe Food Warmer DFW-150 9100104

Turn the power off and unplug the power cord.

Allow the unit to cool down before proceeding.

Check the water pressure regulator gauge (DFW/DFWT/DFWF-200/250 units only).

Is the water pressure within the normal range?

Adjust the water pressure if necessary and describe the adjustments made.

Check for leakage and tighten or replace parts if needed.

Shut off the water supply valve to the unit

Unscrew the strainer cup and carefully remove the mesh strainer screen

Flush all accumulated debris from the strainer cup and mesh strainer screen at the sink

Ensure the mesh strainer screen is not damaged

Place the mesh strainer screen into its seat at the bottom of the strainer cup

Confirm the orange O-ring is properly seated

Loosen the four rear hinge bracket screws one turn only

Push down on the top cover heavily to ensure the gasket is seated squarely around the Generator

While maintaining the downward pressure, re-tighten the screws

Turn the power off, unplug the power cord, and allow the unit to cool down before proceeding

Perform the Daily Cleaning, but do not reassemble the unit

Remove the spray tube by lifting the loose end and pulling it out of the generator hole

Clear out all of the tube’s holes using a paper clip

Gently wash the tube under running water to clear the deposits out of the loose end

Reattach the cover onto the tube

Use a scraper or spatula to remove the excessive calcium/mineral buildup from the generator surface

Thoroughly wipe the generator with a damp cloth to remove any loose buildup and reassemble the unit

Check that all parts are in place after reassembly

Remove the water tank filter by pulling it upwards and out of the bottom hole

Clean the filter by running it under tap water

Replace the water tank filter if the screen is torn or damaged
