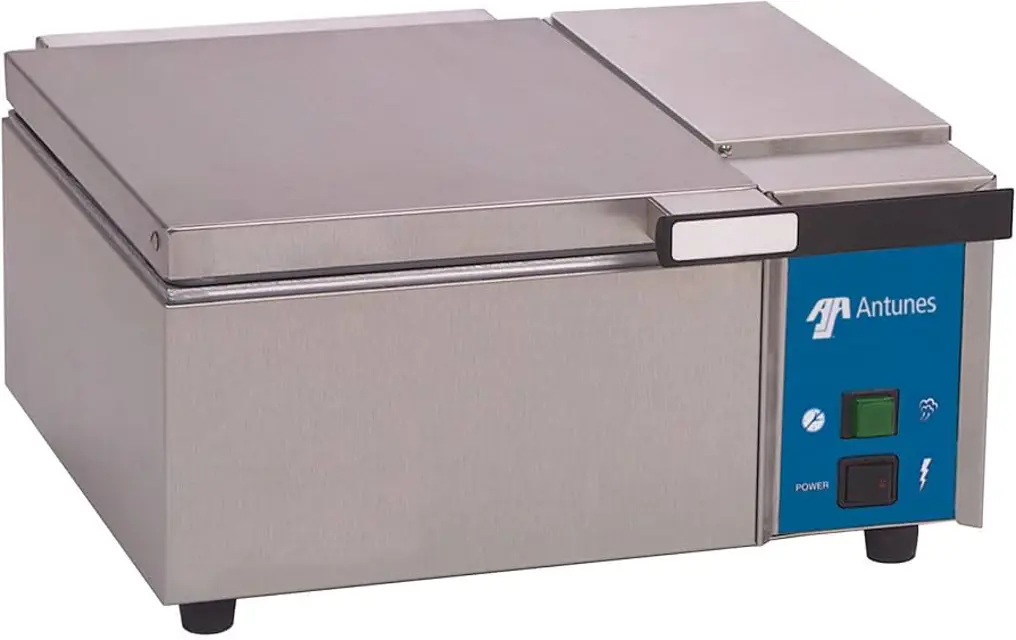

Antunes Deluxe Food Warmer DFW-250 9100115

Shut off the water supply valve to the unit

Unscrew the strainer cup and remove the mesh strainer screen

Flush debris from the strainer cup and mesh strainer screen at the sink

Ensure the mesh strainer screen is not damaged

Place the mesh strainer screen into its seat at the bottom of the strainer cup

Confirm the orange O-ring is properly seated

Loosen the four rear hinge bracket screws one turn only

Push down on the top cover heavily to ensure the gasket is seated squarely around the Generator

While maintaining the downward pressure, re-tighten the screws

Is the top cover properly aligned after adjustment?

Check for any visible gaps in the gasket seating

Turn the power off and unplug the power cord.

Allow the unit to cool down before proceeding.

Check the water pressure regulator gauge (DFW/DFWT/DFWF-200/250 units only).

Is the water pressure within the normal range?

Adjust the water pressure if necessary and describe the adjustments made.

Check for leakage and tighten or replace parts if needed.

Turn off the power and unplug the power cord

Allow the unit to cool down before proceeding

Perform the Daily Cleaning without reassembling the unit

Remove the spray tube by lifting the loose end and pulling it out of the generator hole

Slide the metal cover off of the spray tube

Clear out all of the tube’s holes using a paper clip

Gently wash the tube under running water to clear the deposits out of the loose end

Reattach the cover onto the tube

Ensure the spray tube is not bent
