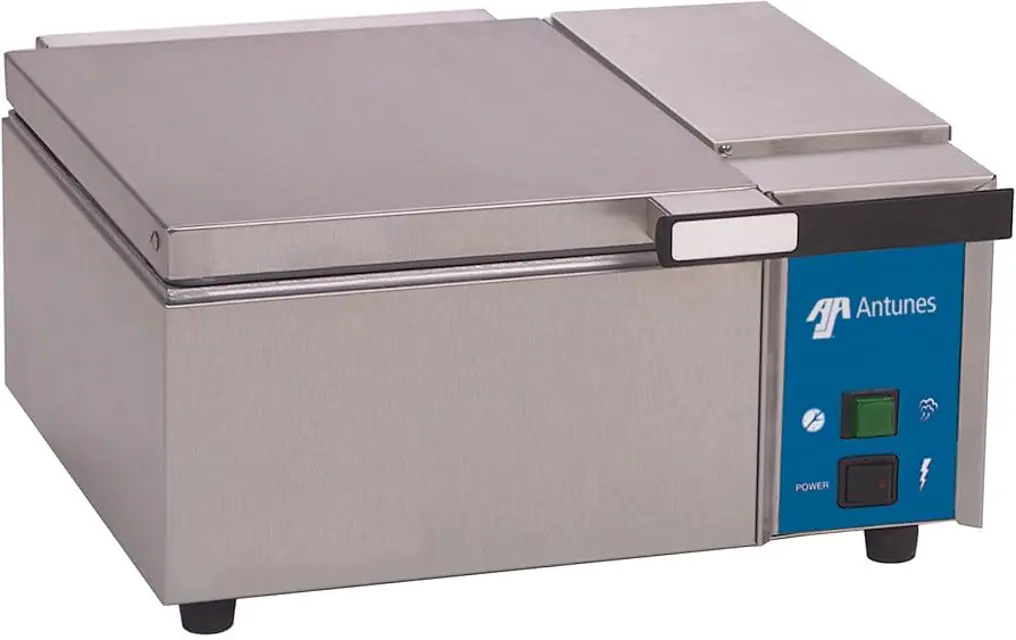

Antunes Deluxe Food Warmer DFW-150 9100106

Turn the power off and unplug the power cord

Allow the unit to cool down before proceeding

Check the water pressure regulator gauge (DFW/DFWT/DFWF-200/250 units only)

Is the water pressure within 20–25 psi (1.4–1.7 kg/cm2 or 138–172 kPa)?

Adjust the water pressure if necessary and describe the adjustments made

Check for leakage and tighten or replace parts if needed

Turn the power off and unplug the power cord

Allow the unit to cool down before proceeding

Remove the water tank filter by pulling it upwards and out of the bottom hole

Clean the filter by running it under tap water

Is the filter screen torn or damaged?

Replace the water tank filter if the screen is torn or damaged

Shut off the water supply valve to the unit

Unscrew the strainer cup and carefully remove the mesh strainer screen

Flush all accumulated debris from the strainer cup and mesh strainer screen at the sink

Ensure the mesh strainer screen is not damaged

Place the mesh strainer screen into its seat at the bottom of the strainer cup

Confirm the orange O-ring is properly seated

Turn the power off, unplug the power cord, and allow the unit to cool down before proceeding

Remove the spray tube by lifting the loose end and pulling it out of the generator hole

Slide the metal cover off of the spray tube

Clear out all of the tube’s holes using a paper clip

Gently wash the tube under running water to clear the deposits out of the loose end

Reattach the cover onto the tube

Loosen the four rear hinge bracket screws one turn only with the top cover closed.

Push down heavily on the top cover to ensure the gasket is seated squarely around the Generator.

While maintaining downward pressure, re-tighten the screws.

Is the top cover securely fastened after adjustment?

Check if the gasket is properly seated and not damaged.
