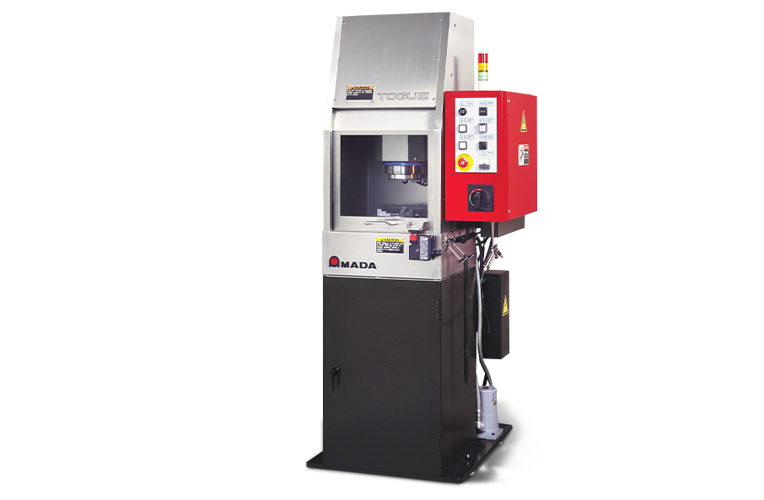

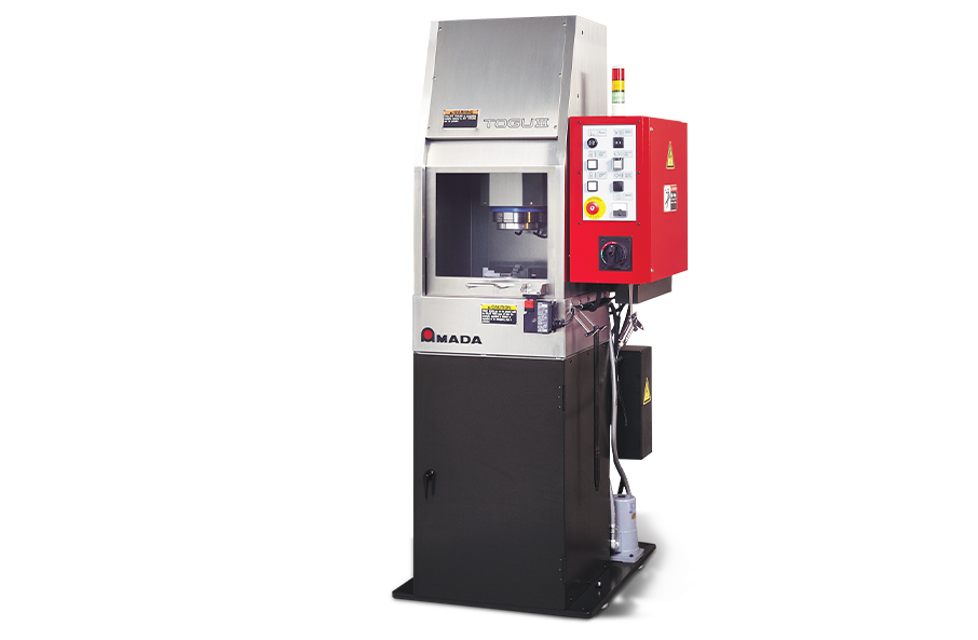

Amada Automatic Tool Grinding Machine TOGU-III-US Sharpener

Warning: The specified conductive grinding wheel alone can be used. Never use commercial grinding wheels. Use of such a grinding wheel breaks the machine.

The grinding wheel has air and coolant nozzles at its rear surface. Wear protective gloves so that you do not get your hands hurt.

Main power circuit breaker switch of the machine turned off

Water wiped off from the grinding wheel

Four M6 bolts securing the grinding wheel to the grinding wheel head removed

Holes of the scroll chuck covered to prevent bolt drop

Grinding wheel removed from the grinding wheel head

New grinding wheel installed in the grinding wheel head

Sign off on the grinding wheel replacement

Warning: Use only No. 1 grease for lubrication

Lubrication of Sliding Part centralized grease lubrication manifold

Sign off on the lubrication process

Warning: Never add a fresh coolant to the one already in the coolant tank.

Check the coolant for level and contamination before the start of work every day.

Is the coolant low in level or dirty?

If the coolant is low in level or dirty, change it immediately.

When changing the coolant, ensure the coolant tank is clean.

Add water to the coolant so that the coolant is diluted 30 to 50 times.

Is the coolant in a sufficient amount to rise above the low mark?

Use the TOGU GRINDING OIL (Amada) as coolant.

Prepare the coolant so that it is diluted 30 to 50 times and in a sufficient amount to rise above the low mark.

Warning: Use only specified repair part or commercial acrylic sheet of 6.0 mm (0.236'') or more in thickness.

Is the acrylic sheet cracked or damaged?

Is the specified repair part available?

If the specified repair part is not available, use a commercial acrylic sheet of 6.0 mm (0.236'') or more in thickness.

Is the replacement acrylic sheet of the correct thickness?

Upload a photo of the replaced acrylic sheet

Sign off on the acrylic sheet replacement
