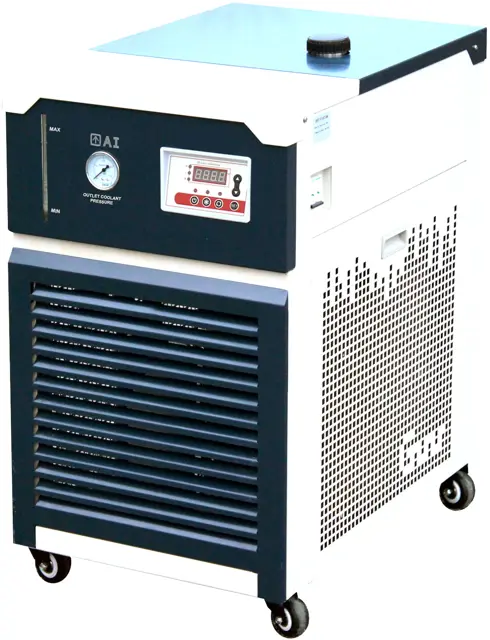

Across International Recirculating Chiller C80

Turned the circuit breaker off and unplugged the unit?

Removed the side panel to access the condenser coil?

Note: Proceed with caution when removing the side panels. Panels may have ground wires attached, which can become disconnected from the terminals if the panels are pulled too far away.

Cleaned the front of the condenser coil with a brush?

Used compressed air or coil cleaner to further clean the coil?

Re-assembled and tested the cold trap to make sure everything is working properly?

Every 3 – 6 months, qualified personnel should inspect the unit and keep records of it maintenance for any City, State, or Federal Inspector.

Please take the time to review all aspects of the unit and possible wear and tear items that are not listed below.

It is important that customers maintain and service their chiller regularly. No certification or special licenses are needed to maintain this unit, however, for basic safety practices, pleasure take all proper precautions to reduce the risk of injury please take appropriate precautions when performing any maintenance or service.

When in doubt, contact the Across International service team for guidance.

Power Cord and Plug – Do not modify or change the power cord or plug. A dedicated circuit should be committed power output.

Check the power cord and plug for any damage

Check the unit for any wear and tear

Sign off on the chiller maintenance
