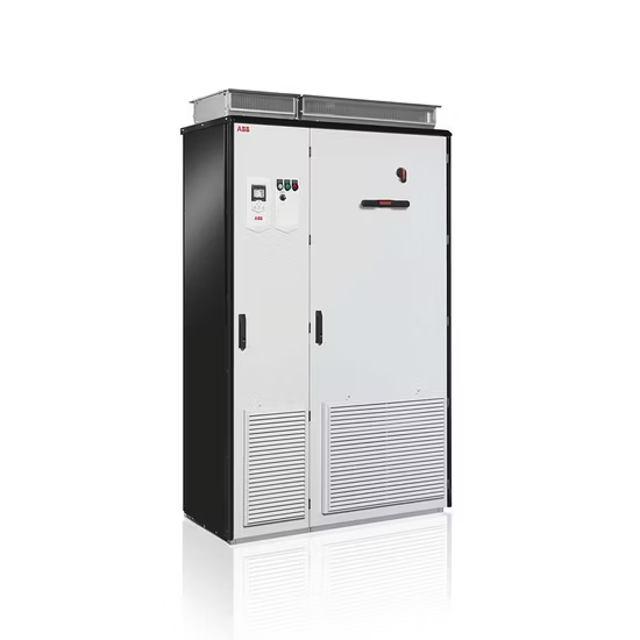

ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0715A-5
Need answers fast?
Explore the manual using AI.
The ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0715A-5 is designed for efficient motor control and energy savings in industrial applications. This advanced drive offers flexibility, reliability, and ease of integration, making it ideal for various automation needs. Optimize your operations with ABB's cutting-edge technology.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0715A-5
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0715A-5
Create an account to install this asset package.
Maintenance Plans for ABB Enclosed Variable Speed/Frequency Drive Model ACS880-07-0715A-5
Integrate maintenance plans directly into your work orders in MaintainX.
9 Yearly IP54 (UL type 12) Roof Fan 50 Hz Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Front and back gratings slid upwards and removed
Mounting screws of the upper cover removed and cover lifted off
Fan power supply wires disconnected
Mounting screws of the fan removed
Mounting screws of the fan cover removed
Fan lifted off
New fan installed in reverse order
1 Yearly Drive Maintenance
Performance quality of supply voltage
Inspect spare parts
Performance DC circuit capacitors reforming, spare modules and spare capacitors
Inspect IP22 and IP42 air inlet and outlet meshes
Inspect tightness of terminals
Inspect dustiness, corrosion and temperature
ABB-SACE Air circuit breaker maintenance
Sign off on the yearly drive maintenance
9 Yearly Circuit Board Compartment Cooling Fan Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Drive module removed from the cabinet
Fastening screw of the fan enclosure undone
Power supply cable of the fan unplugged
New fan installed in reverse order
Counter reset in group 5 in the primary control program
Sign off on the fan replacement
9 Yearly Drive Module Main Fan Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Drive module removed from the cabinet
Support legs of the pedestal opened
Two screws that fasten the fan assembly plate undone
Fan assembly plate tilted down
Power supply wires of the fans disconnected
Fan assembly removed from the drive module
Fastening screws of the fan(s) undone and fan(s) removed from the assembly plate
1 Yearly Door Filter IP54 Replacement
Check the dustiness of the air inlet meshes
If the dust cannot be removed by vacuum cleaning from outside through the grating holes with a small nozzle, proceed as follows:
Stop the drive and do the steps in section Electrical safety precautions before you start the work
Remove the fasteners at the top of the grating
Lift the grating and pull it away from the door
Remove the air filter mat
Place the new filter mat in the grating the metal wire side facing the door
Reinstall the grating in reverse order
Sign off on the filter replacement
Parts for ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0715A-5
Access the parts list for your equipment in MaintainX.
Fuse UL
170M6416
Fuse IEC
170M6416
Fuse IEC
SC33AR69V13CTF
Sine Filter
NSIN0900-6
Fuse UL
170M6416
Fuse IEC
170M6416
Fuse IEC
SC33AR69V13CTF
Sine Filter
NSIN0900-6
Fuse UL
170M6416
Fuse IEC
170M6416
Fuse IEC
SC33AR69V13CTF
Sine Filter
NSIN0900-6
