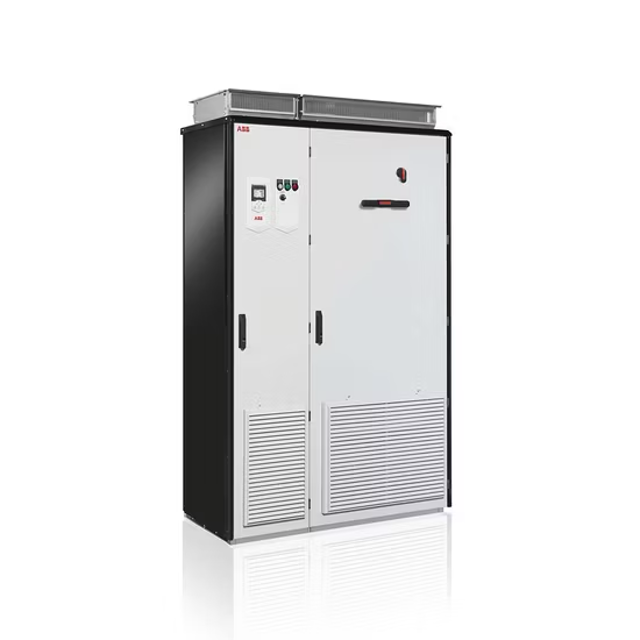

ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0590A-7
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0590A-7
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0590A-7
Create an account to install this asset package.
Maintenance Plans for ABB Enclosed Variable Speed/Frequency Drive Model ACS880-07-0590A-7
Integrate maintenance plans directly into your work orders in MaintainX.
Drive Module Replacement
WARNING! Do not use the module extraction/installation ramp with plinth heights that exceed the maximum allowed height.
Attach the module extraction/installation ramp carefully.
Make sure that the module does not fall over when you move it on the floor.
Do not roll the module on its wheels for a longer distance than what is required for inserting or extracting the module.
To prevent the drive module from falling, attach its top lifting lugs with chains to the cabinet before you push the module into the cabinet and pull it from the cabinet.
Stop the drive and do the steps in section Electrical safety precautions before you start the work.
Unplug quick connector(s) at the right top corner of the control unit mounting plate.
Remove the control unit mounting plate.
Remove the shroud.
6 Yearly IP54 (UL type 12) Roof Fan 60 Hz Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Front and back gratings slid upwards and removed
Mounting screws of the upper cover removed and cover lifted off
Fan power supply wires disconnected
Mounting screws of the fan removed
Mounting screws of the fan cover removed
Fan lifted off
New fan installed in reverse order
9 Yearly IP54 (UL type 12) Roof Fan 50 Hz Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Front and back gratings slid upwards and removed
Mounting screws of the upper cover removed and cover lifted off
Fan power supply wires disconnected
Mounting screws of the fan removed
Mounting screws of the fan cover removed
Fan lifted off
New fan installed in reverse order
ZCU-12 Memory Unit Replacement
Warning: Do not remove or insert the memory unit when the control unit is powered.
Drive stopped and electrical safety precautions followed
Upload a photo of the memory unit before removal
Clip at the side of the memory pulled up
Memory unit removed
Upload a photo of the memory unit after removal
Memory unit installed in reverse order
Upload a photo of the memory unit after installation
Sign off on the memory unit replacement
ZCU-14 Memory Unit Replacement
WARNING! Do not remove or insert the memory unit when the control unit is powered.
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed?
Clip of the memory unit pulled forward?
Memory unit taken off?
Memory unit replaced in reverse order?
Sign off on the memory unit replacement
Parts for ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0590A-7
Access the parts list for your equipment in MaintainX.
Fuse IEC
170M6413
Fuse UL
170M6413
Sine Filter
NSIN0900-6
Fuse IEC
SC33AR69V900TF
Fuse IEC
170M6413
Fuse UL
170M6413
Sine Filter
NSIN0900-6
Fuse IEC
SC33AR69V900TF
Fuse IEC
170M6413
Fuse UL
170M6413
Sine Filter
NSIN0900-6
Fuse IEC
SC33AR69V900TF
